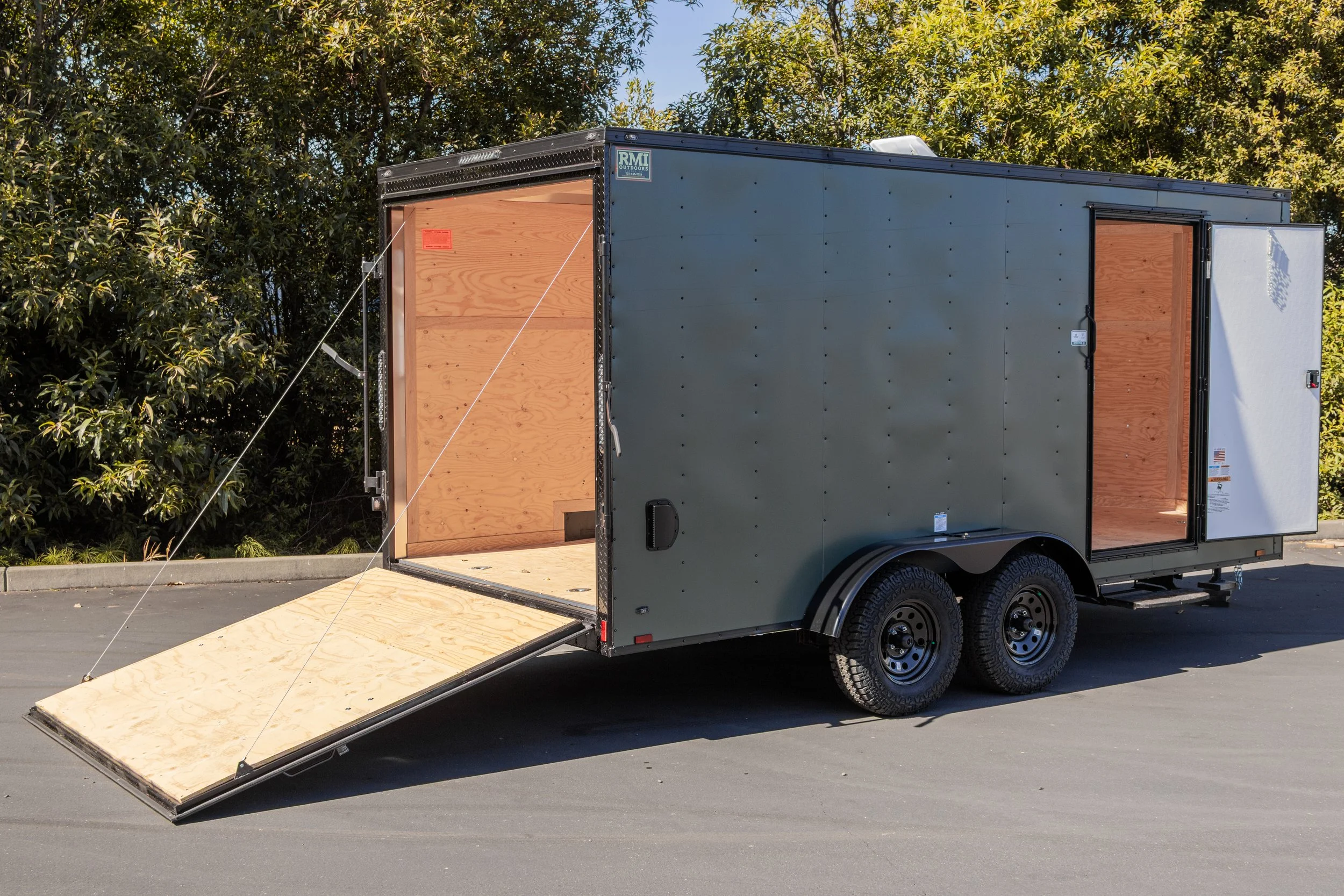

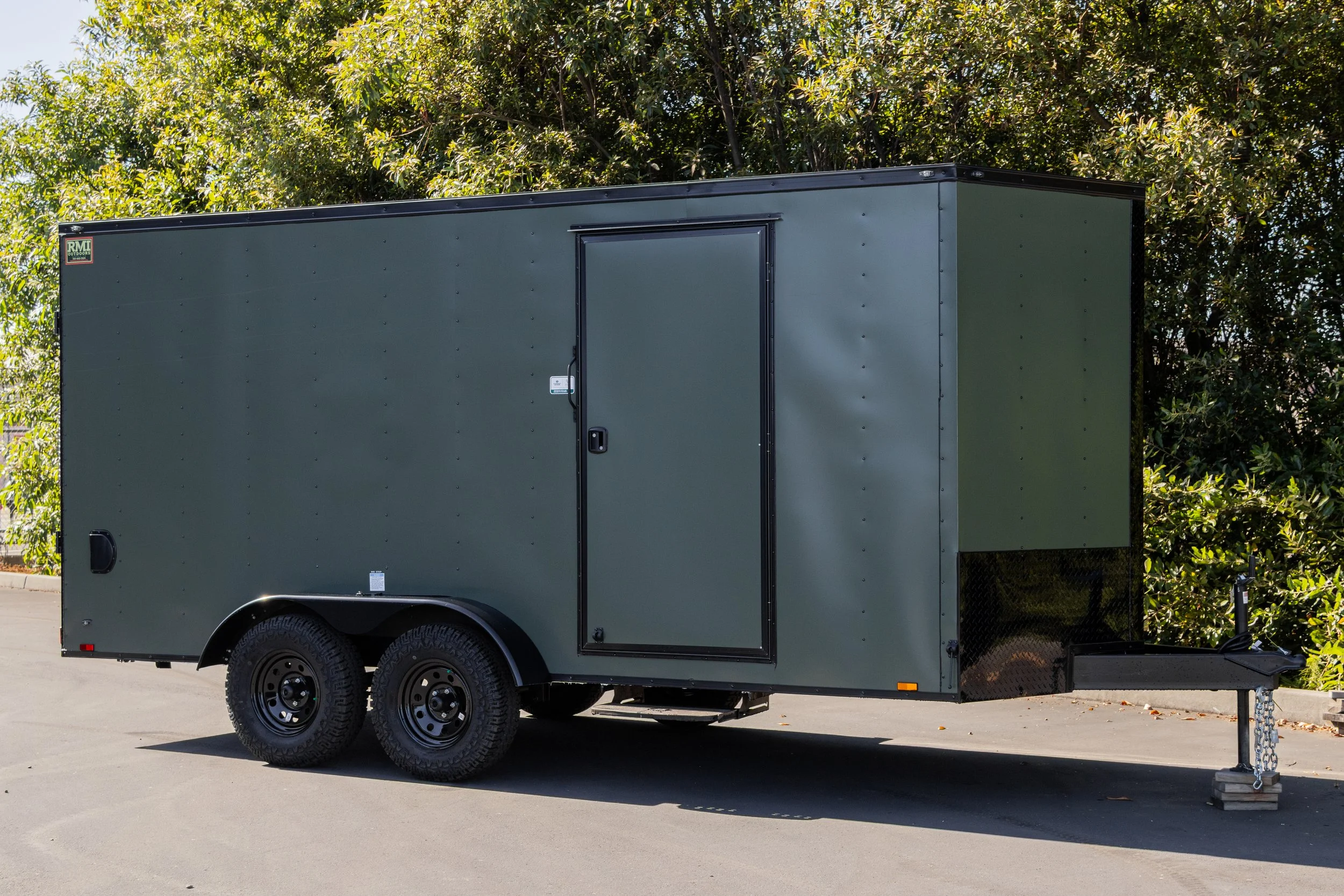

Apex 7x16 E-Series 7K with Ramp Door
STOCK NUMBER: FT-4652
MODEL NUMBER: EHW714TA2
COLOR: OD Green with Blackout Trim
REAR OPENING: Ramp Door with Spring Assist
REAR DOOR OPENING: 82" H X 77" W
CURBSIDE DOOR OPENING: 70" H X 34" W
CURB WEIGHT: 2,012
PAYLOAD: 4,988
Tandem 3500# Leaf spring braking straight axles
23575R15 Rainier Apex 6-Ply Tires on powder coated steel rims
Top-wind jack with foot
Pull out step for RV door
(2) Rear stabilizer jacks
Welded safety chains
2-5/16" Coupler
18” V-Nose Front
24" ATP Stoneguard
16" O/C Walls
24" O/C Floor and ceiling
3/16 Luan ceiling liner
Manual roof vent
Aluminum top rails
0.030” aluminum exterior
ATP Trim
Rear end ATP wrap
Exposed steel painted epoxy black
Z-tech undercoat
LED clearance and tail lights
Aluminum exterior fenders
Interior:
3/4" Plywood floor
3/8" Plywood walls
79" Interior height
81" Interior width
(2) LED Dome lights
(1) 12V switch for dome lights
36" RV door
Interior spare tire mount with spare
Flow through vents
