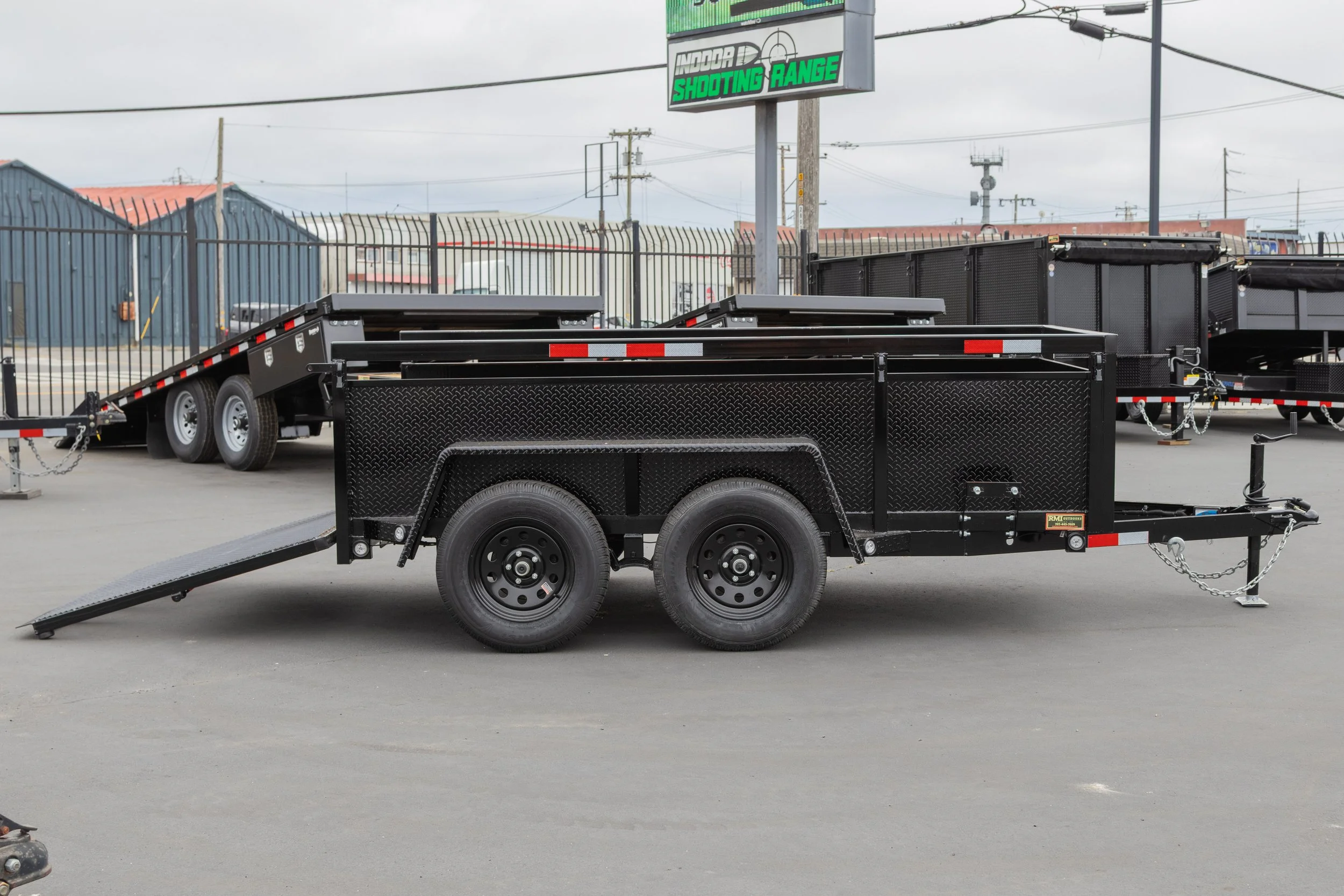

Deluxe 5x10 Tandem Utility With Rear Ramp
MODEL: DBX510-7KR
CURB WEIGHT: 1,500
GVWR: 7,000
Tandem 3500# leaf spring axles
Brakes on rear axle
20575R15 D-Rated tires
4" Channel Tongue
2-5/16" Ball receiver
2,000# top wind jack
7-way electrical connection
Sealed wire harness
3" X 2" X 3/16" Angle Mainframe
3" X 2" Angle Crossmembers
2" X 2" Tube box supports
3" X 2" Upper rail
32" High sides with 24" diamond plate

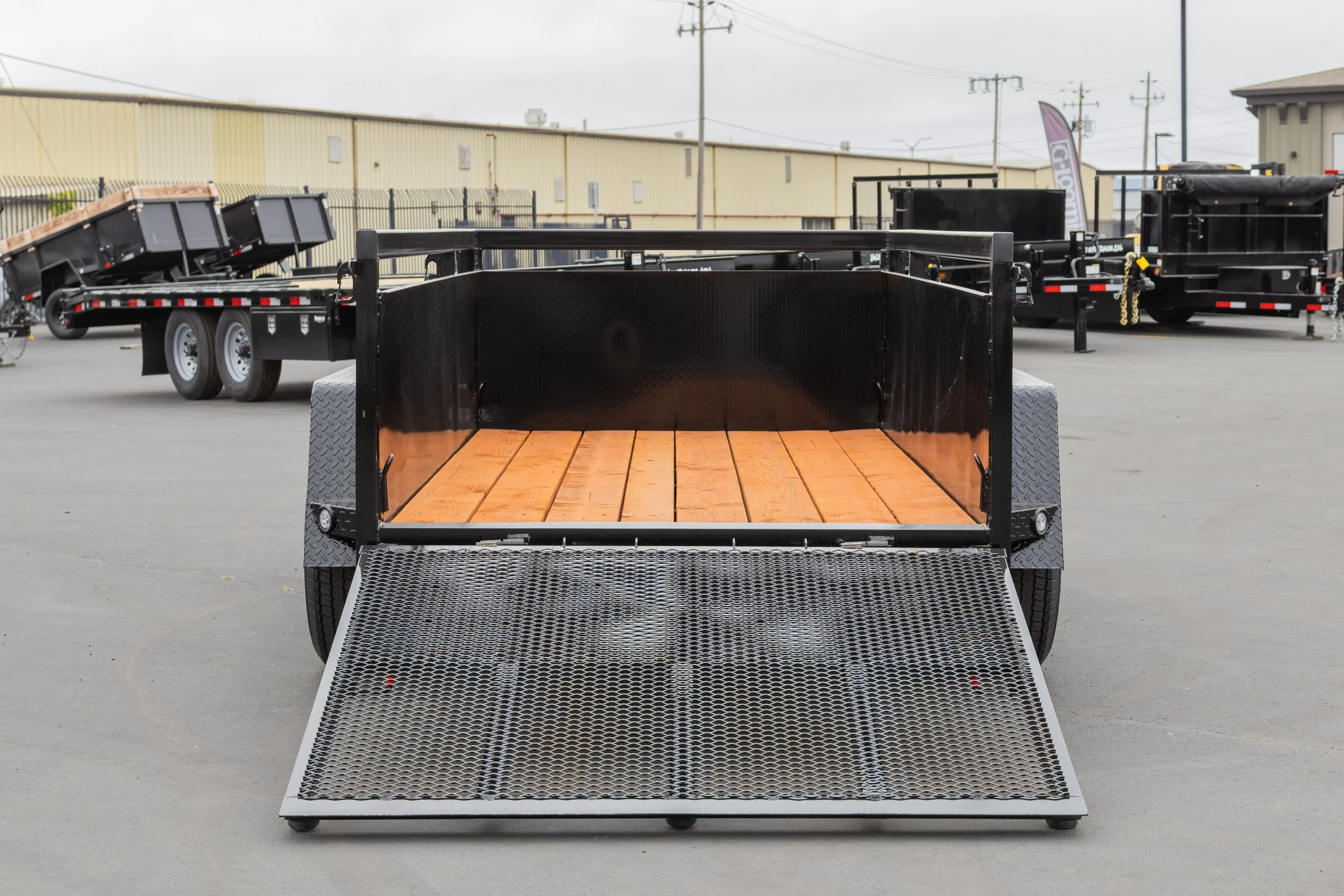

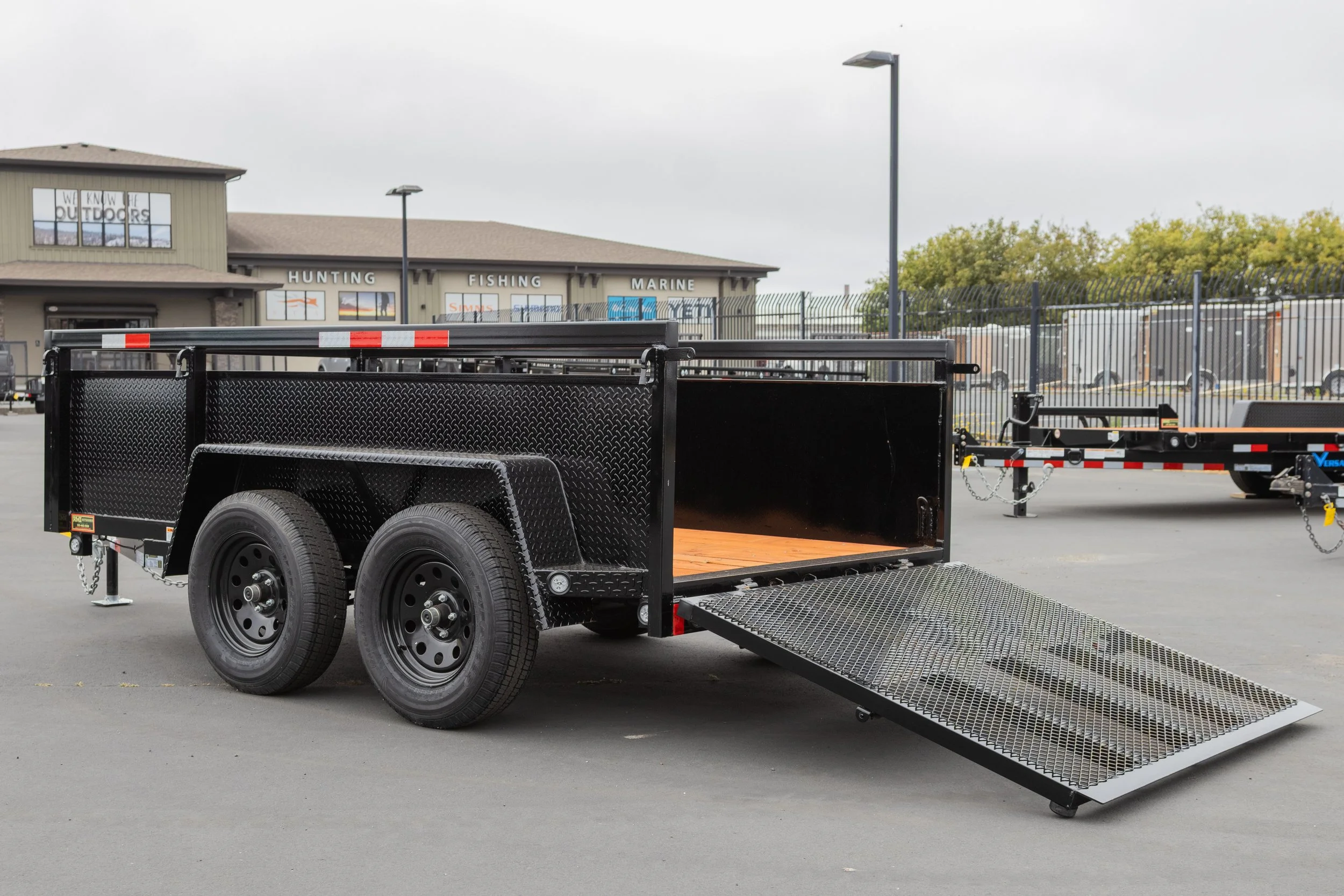

Removable 4' Deluxe expanded rear ramp
Diamond plate step on fenders
Step plates
Welded C-hook tie downs
LED marker lights
Pressure treated wood deck
Spare tire carrier (Spare tire not included)
