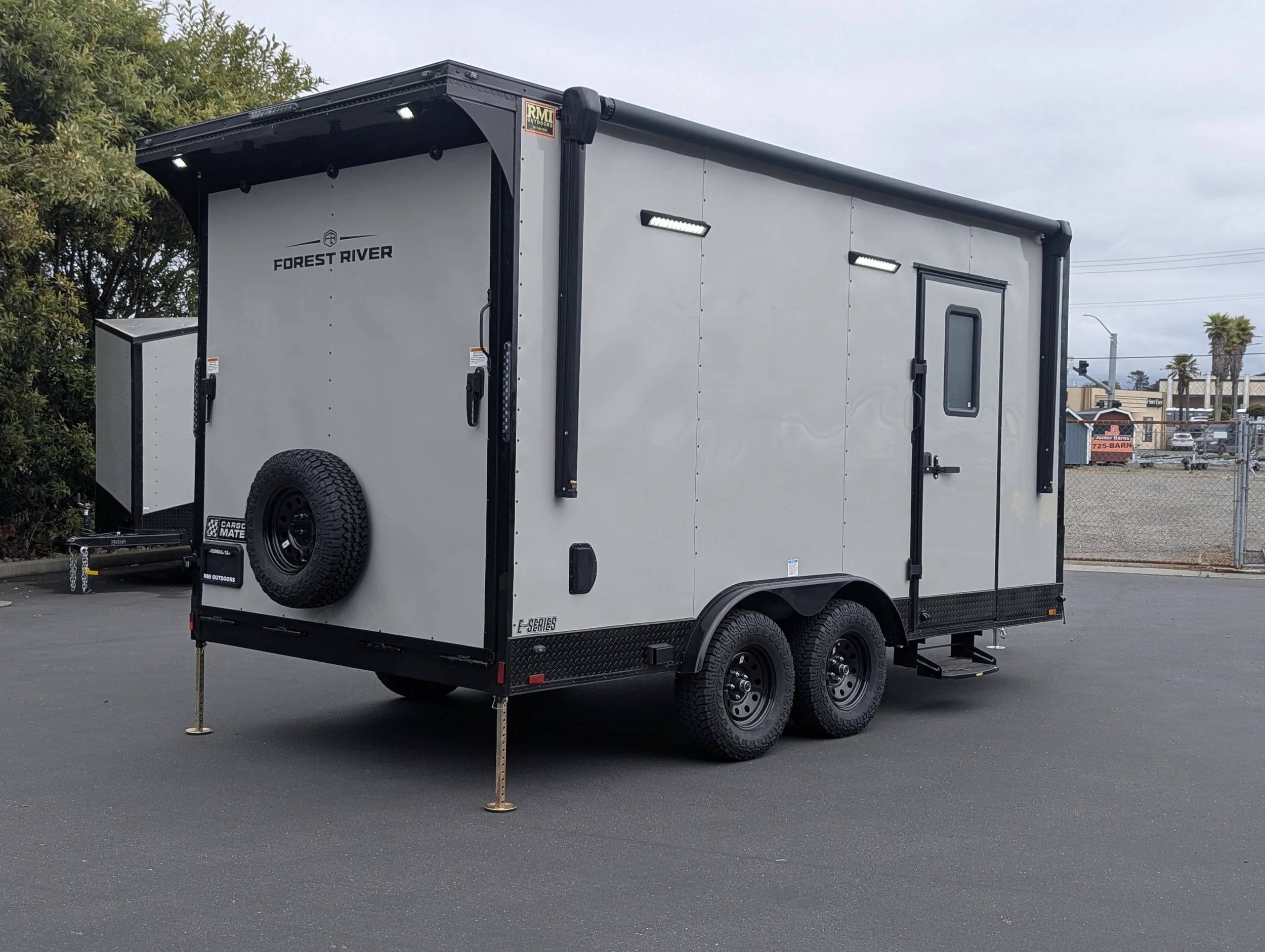

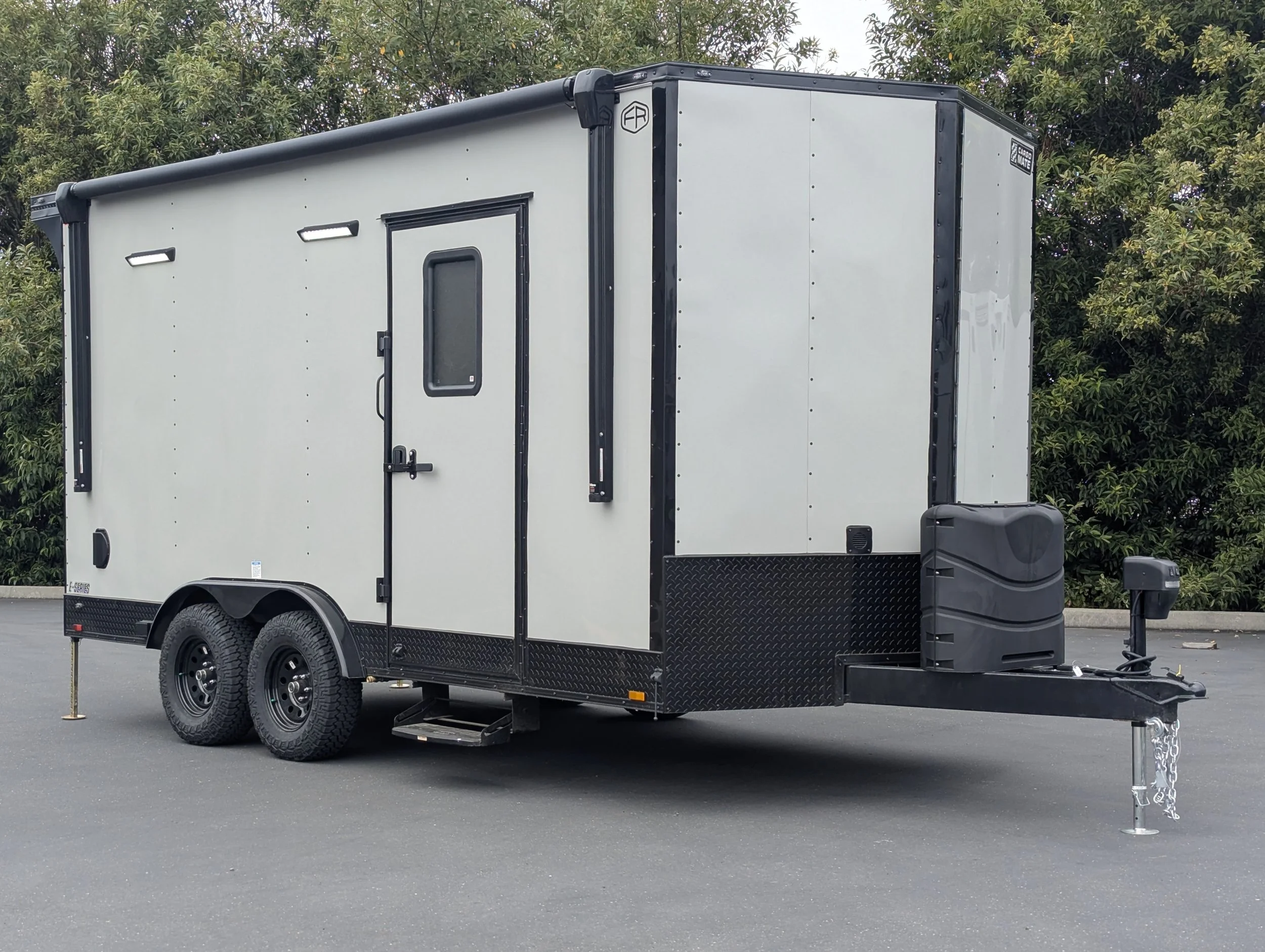

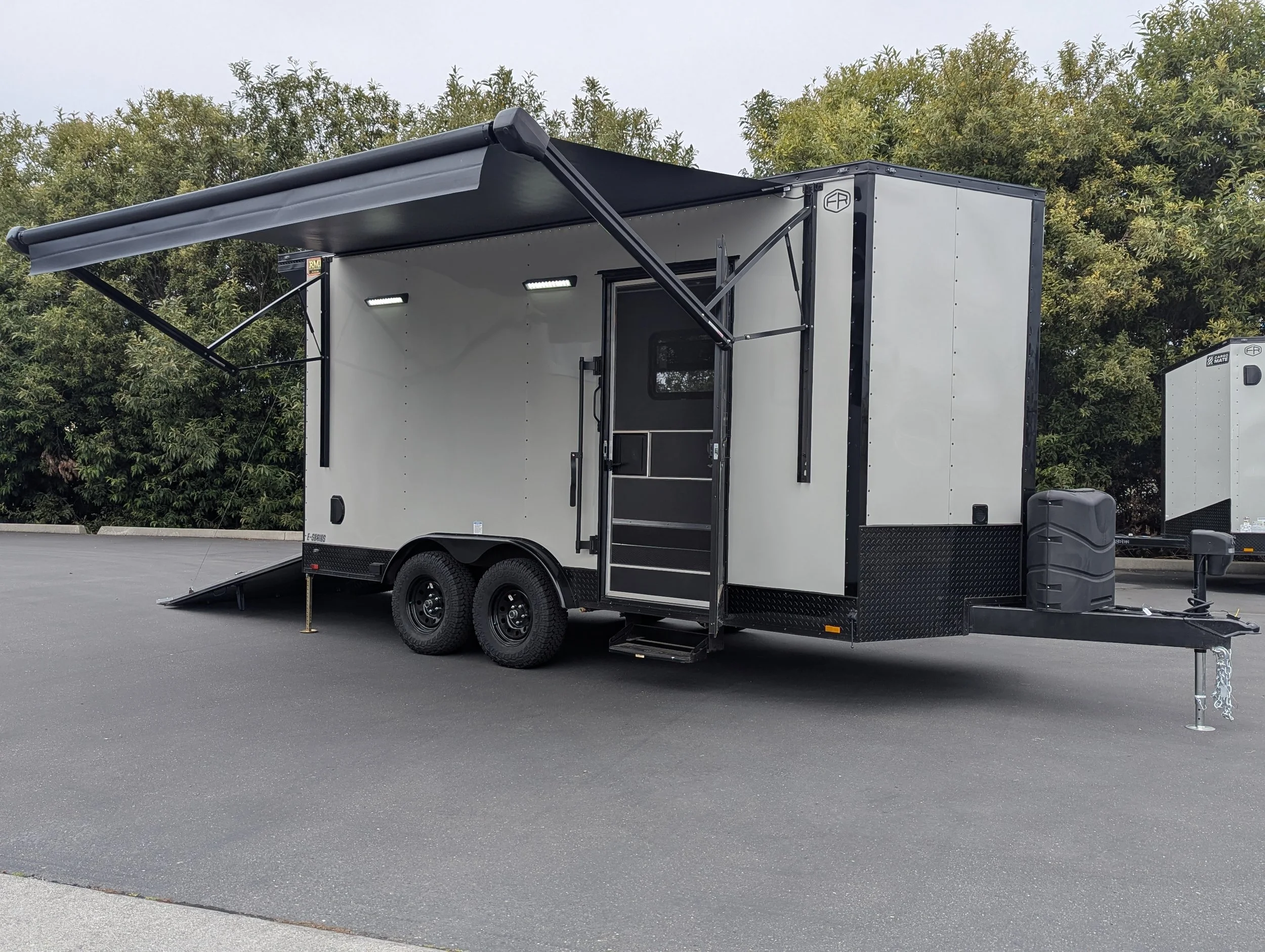

INSULATED 8X16 HUNTING TRAILER

STOCK NUMBER: FT-6863
MODEL: EHW816TA2
COLOR: Dove Gray

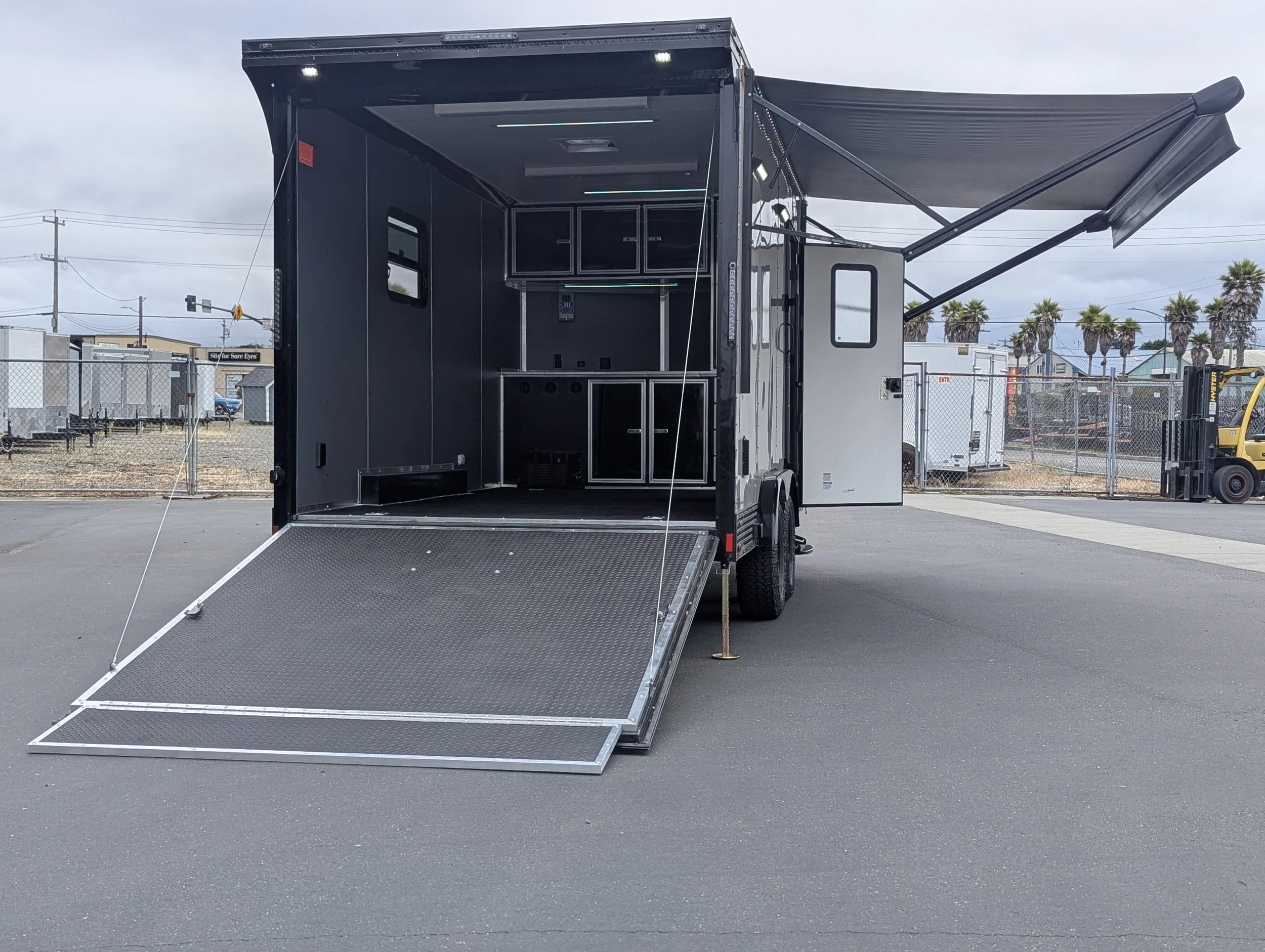

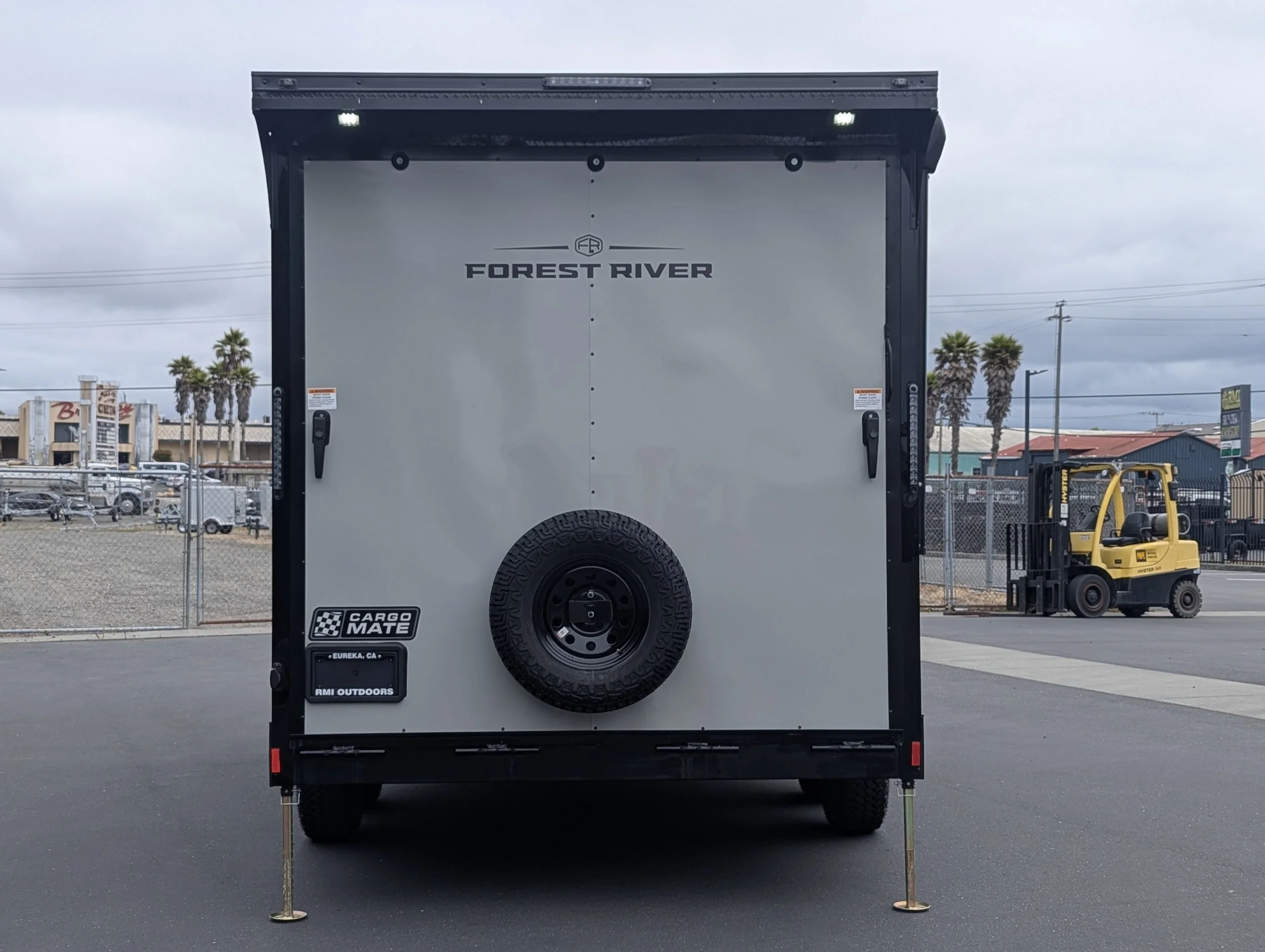

REAR OPENING: Reinforced Ramp
REAR DOOR OPENING: 84" H X 86" W
CURBSIDE DOOR OPENING: 76" H X 34" W
CURB WEIGHT: 4,511
PAYLOAD: 2,489

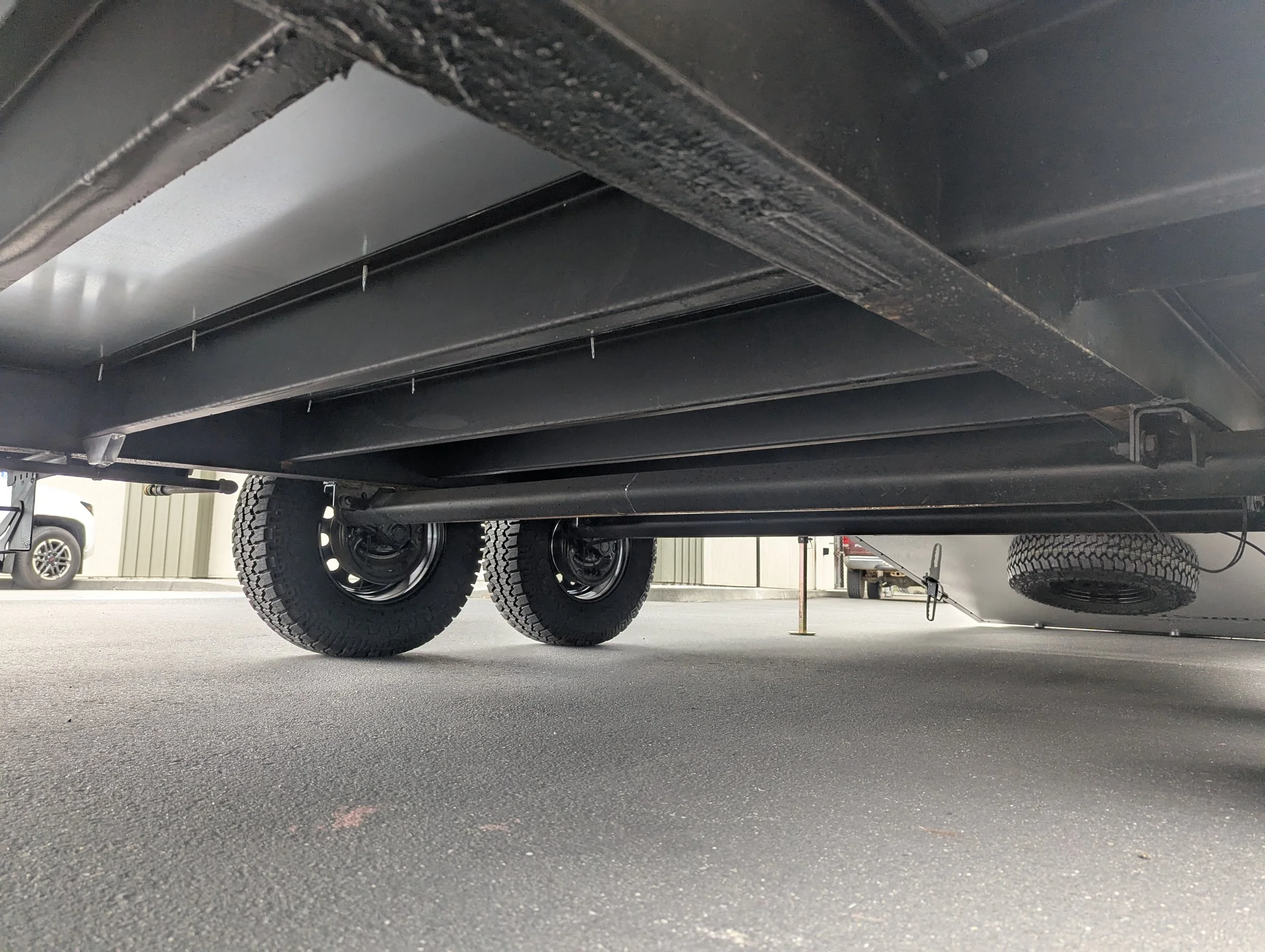

Tandem 3500# torsion 45° downstart axles
23575R15 Tires on powder coated steel rims

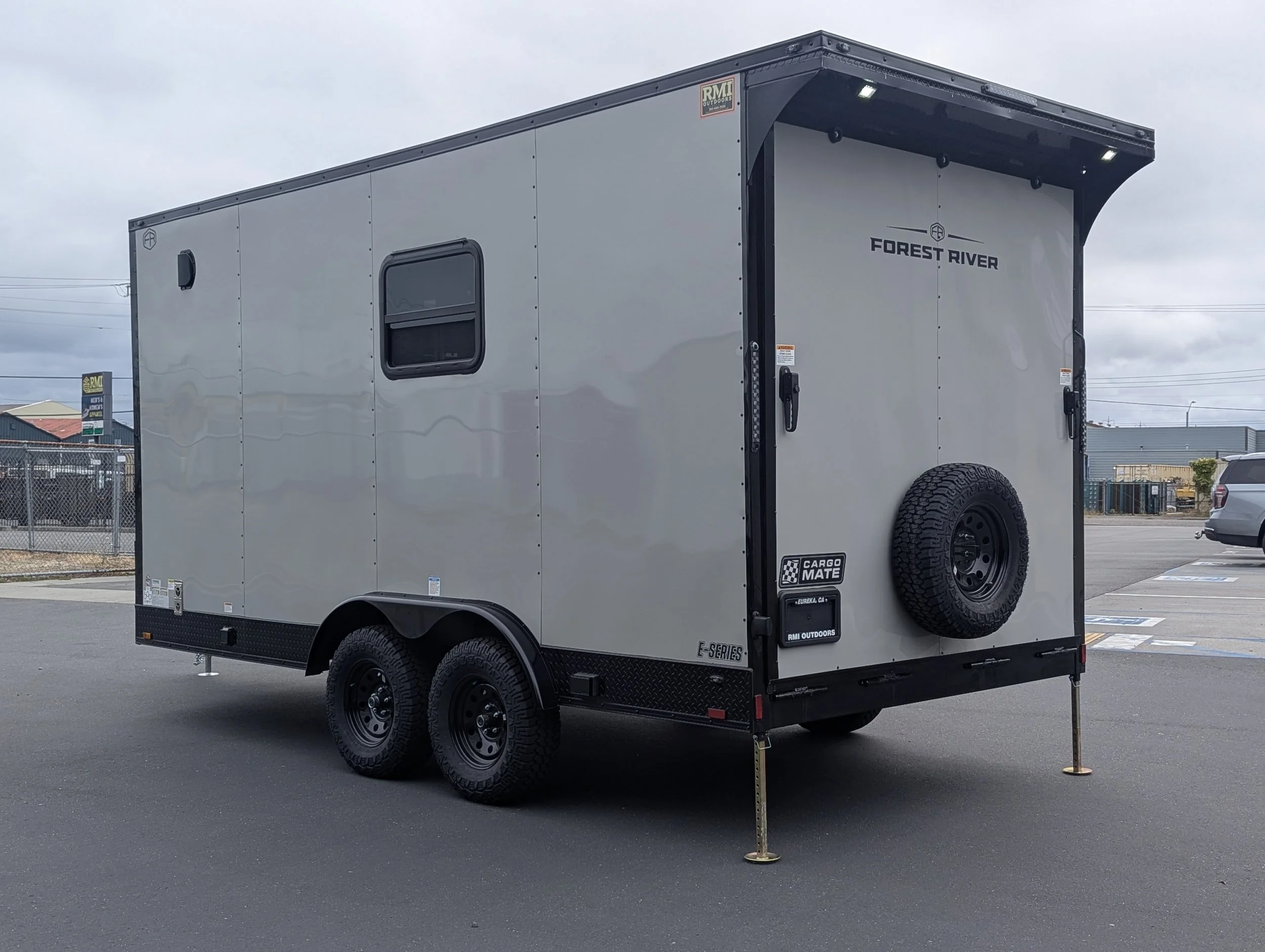

Rear spare tire mount
14” Rear spoiler
Rear loading lights wired to backup circuit
Electric jack with drop foot
Rear stabilizer jacks
Welded safety chains

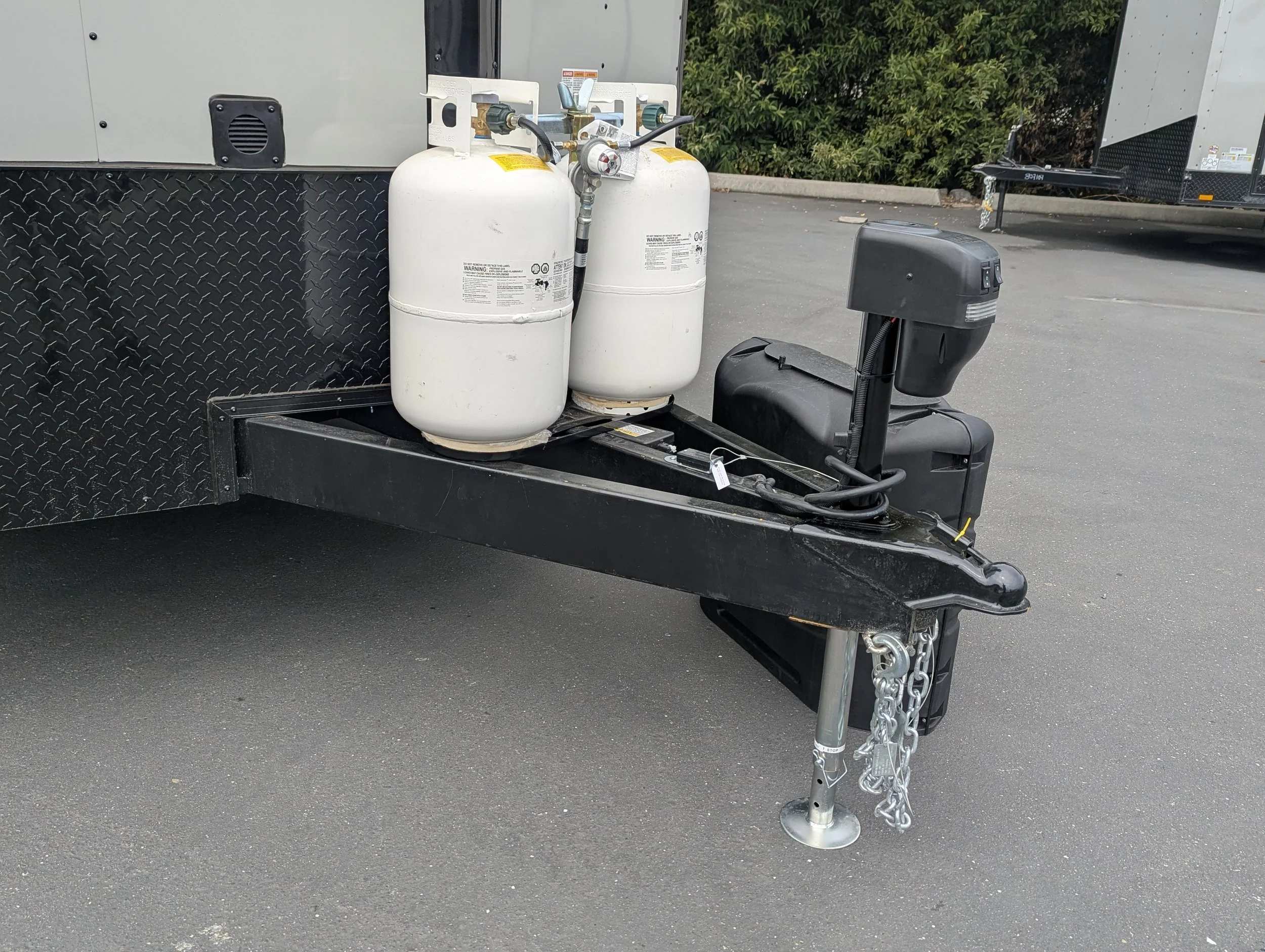

60” Extended triple tube tongue
2-5/16" Coupler

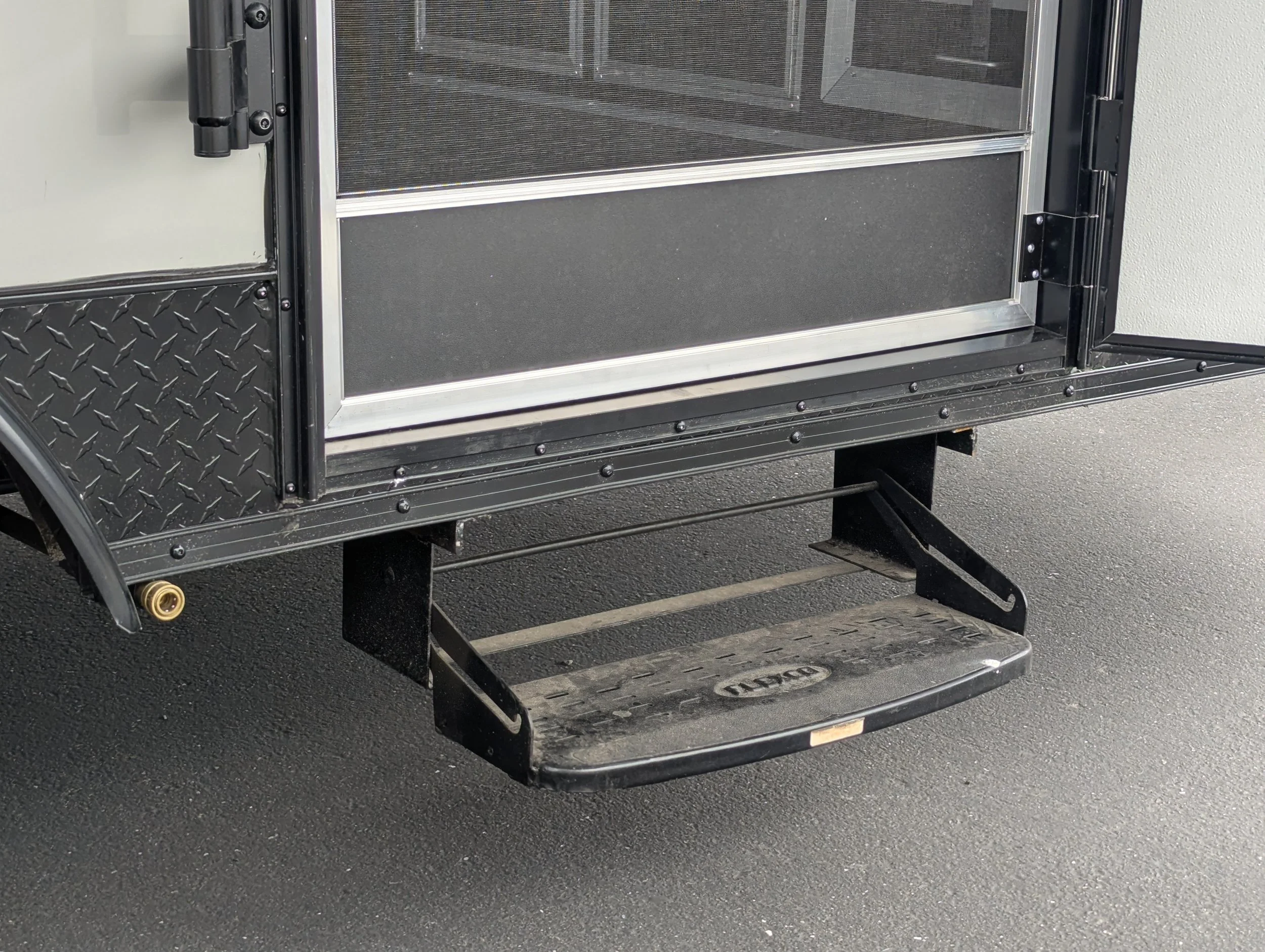

36” RV door with window and screen door
18” V-nose front
24" Black ATP Stoneguard
16" O/C Floors
16" O/C Walls
24" O/C ceiling
Galvanized roof
Black Aluminum top rails
0.030” aluminum exterior
Rear end aluminum wrap
Exposed steel painted epoxy black
Z-tech undercoat
LED clearance and tail lights
Aluminum exterior fenders
All black exterior aluminum extrusions

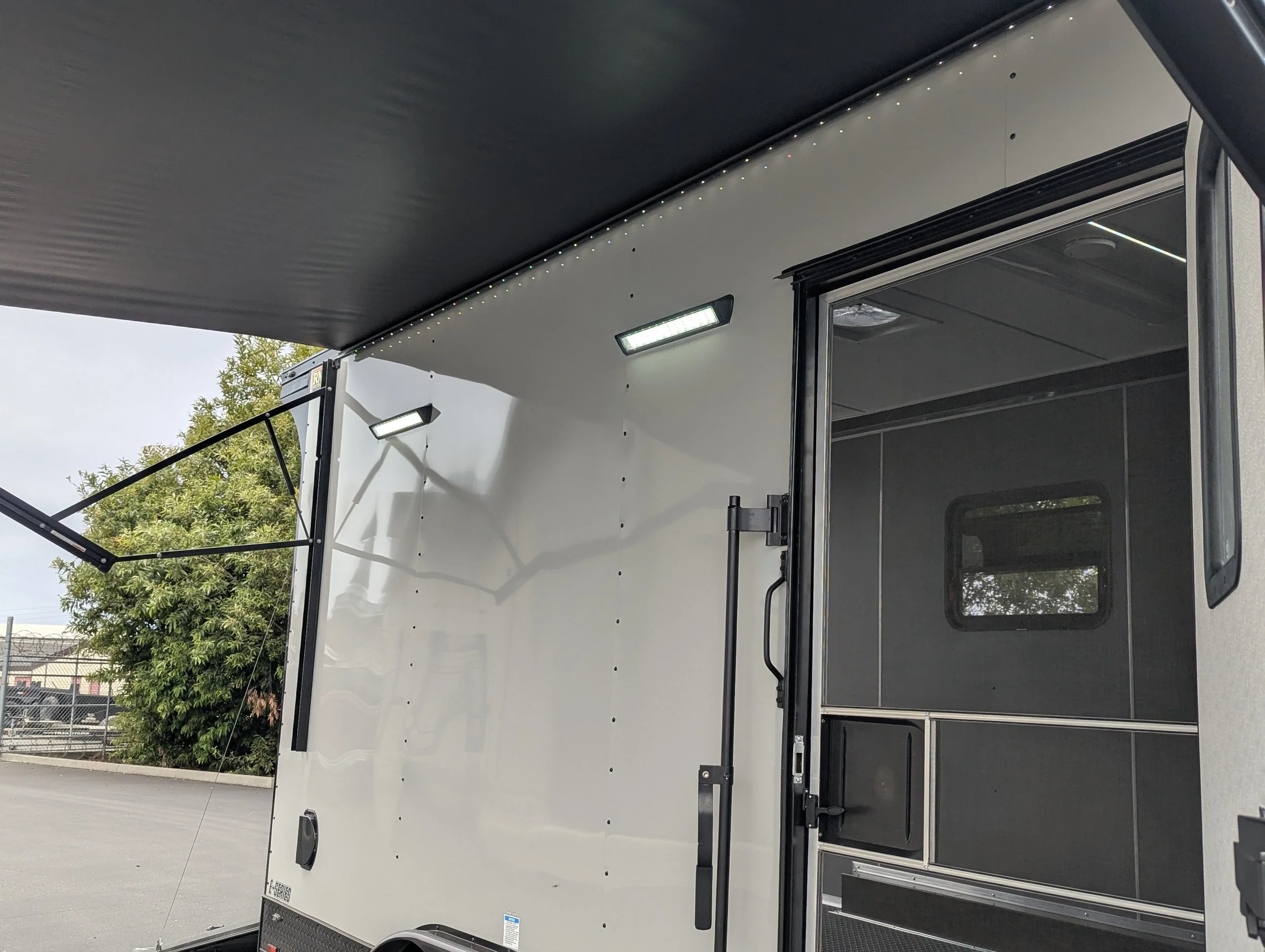

14’ Electric awning with underside lights
(2) 200W solar panels with charge controller

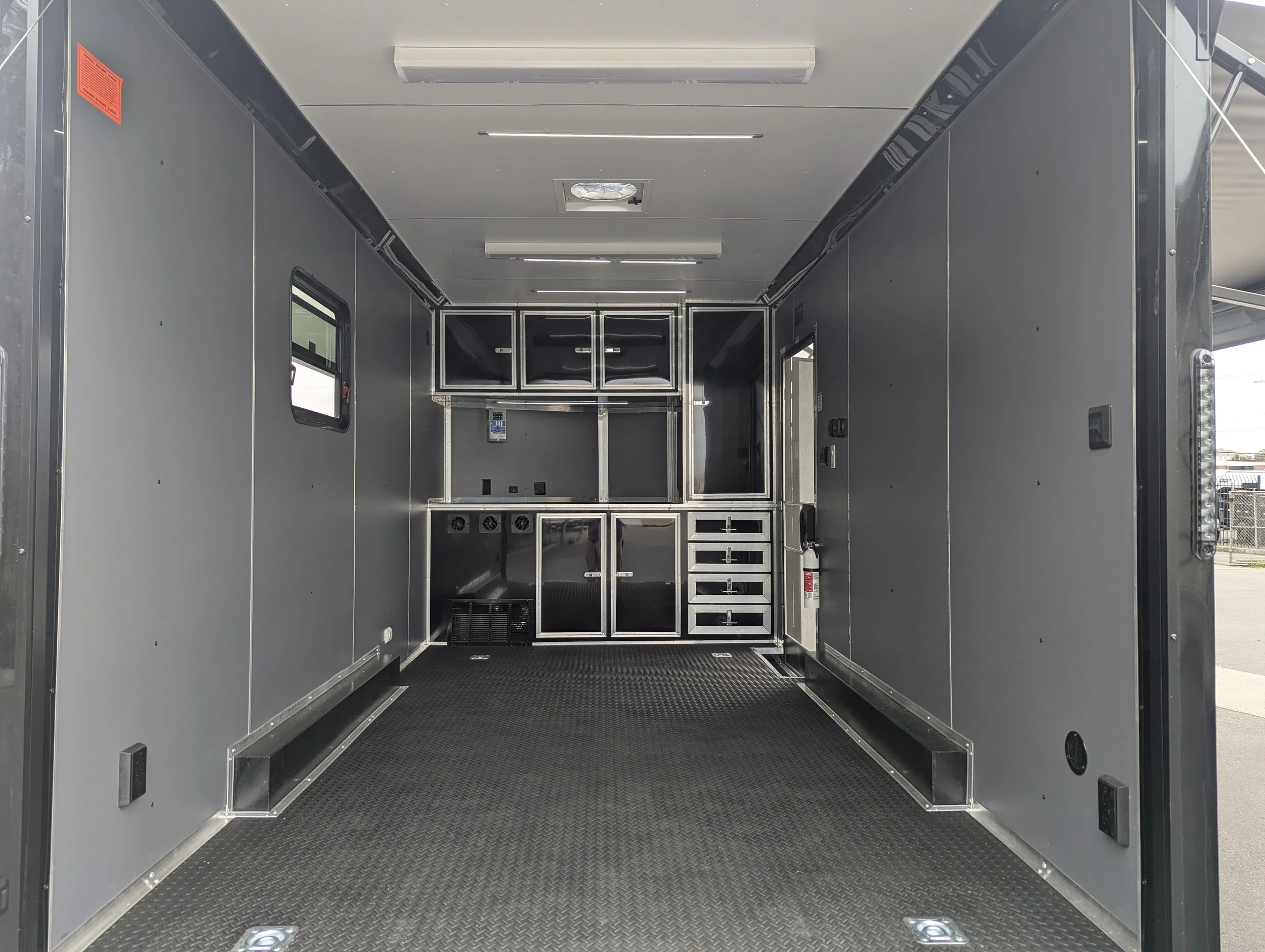

Interior:

Insulated 3/4" Plywood subfloor
Galvanized underbelly

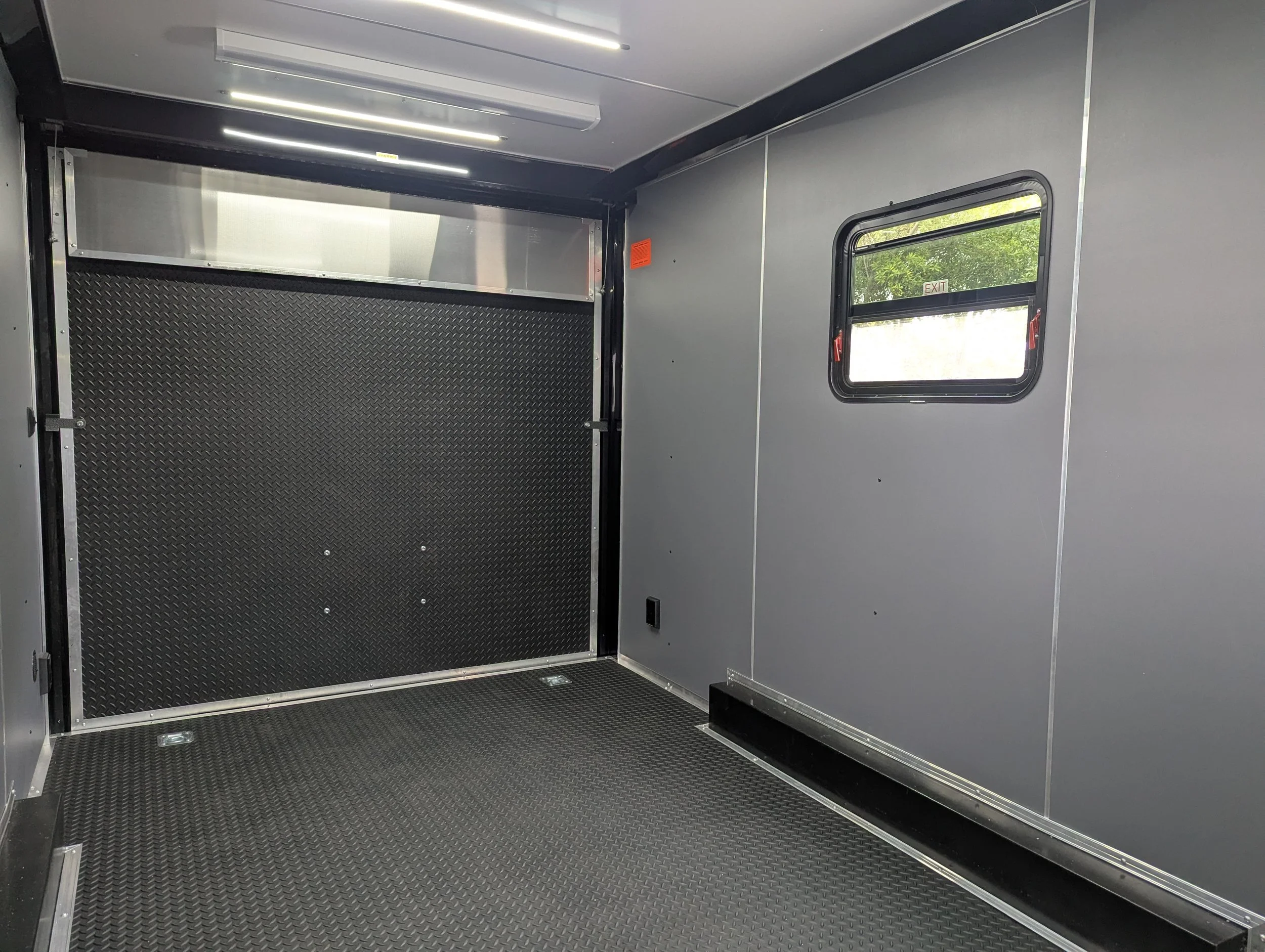

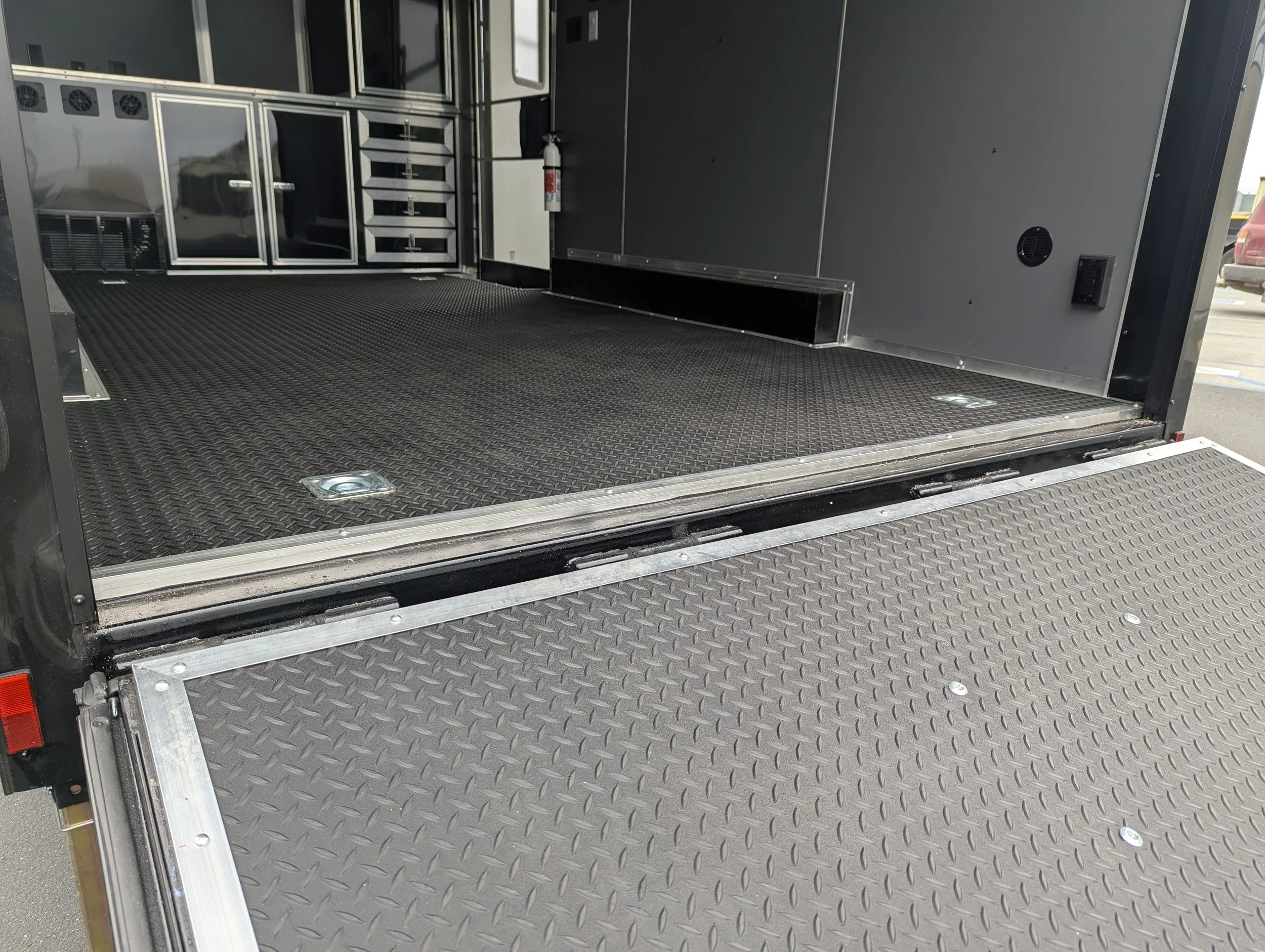

Rubber Treadplate floor
(4) 5K D-rings
Insulated grey vinyl walls
Insulated white vinyl ceiling liner

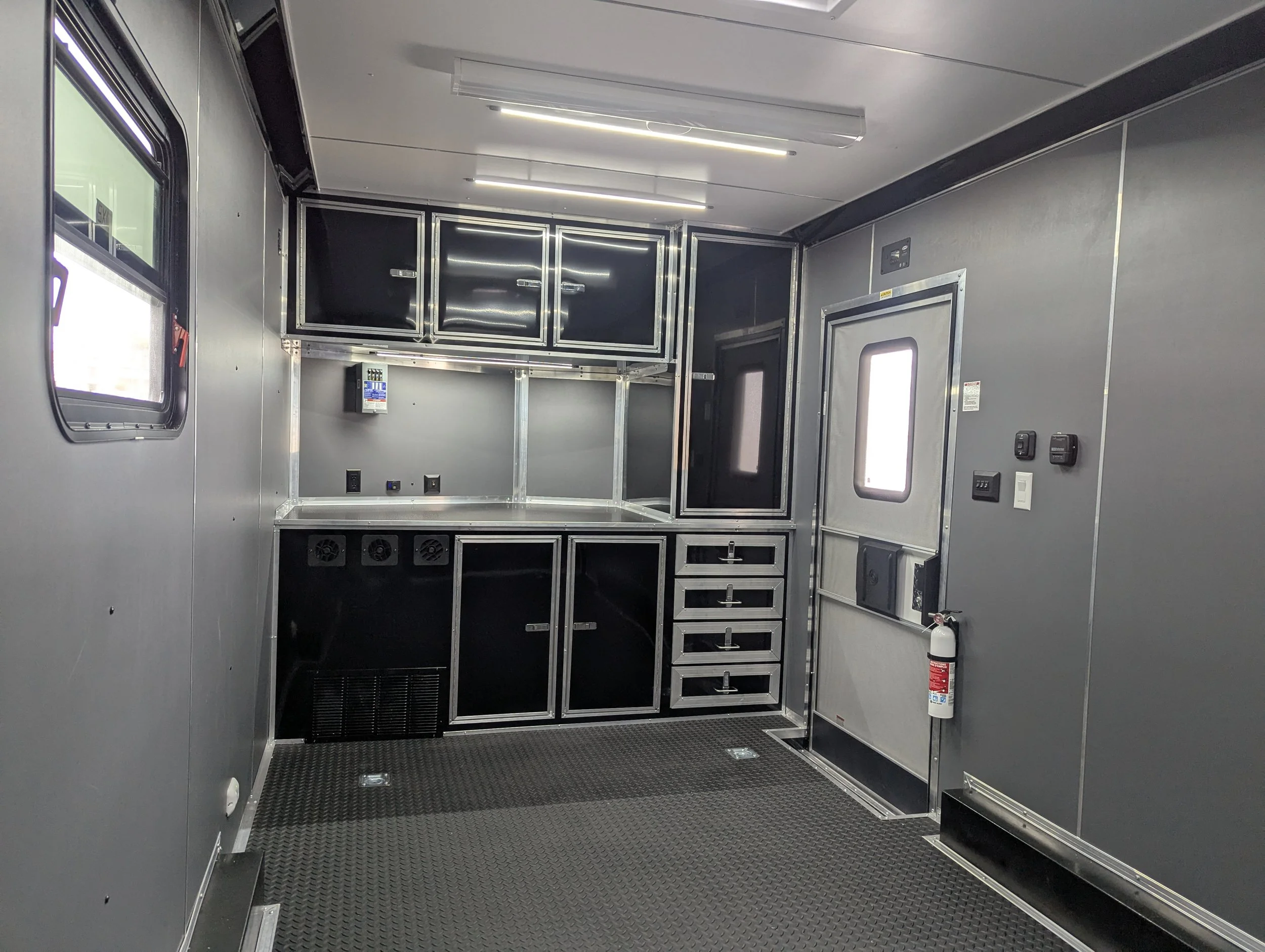

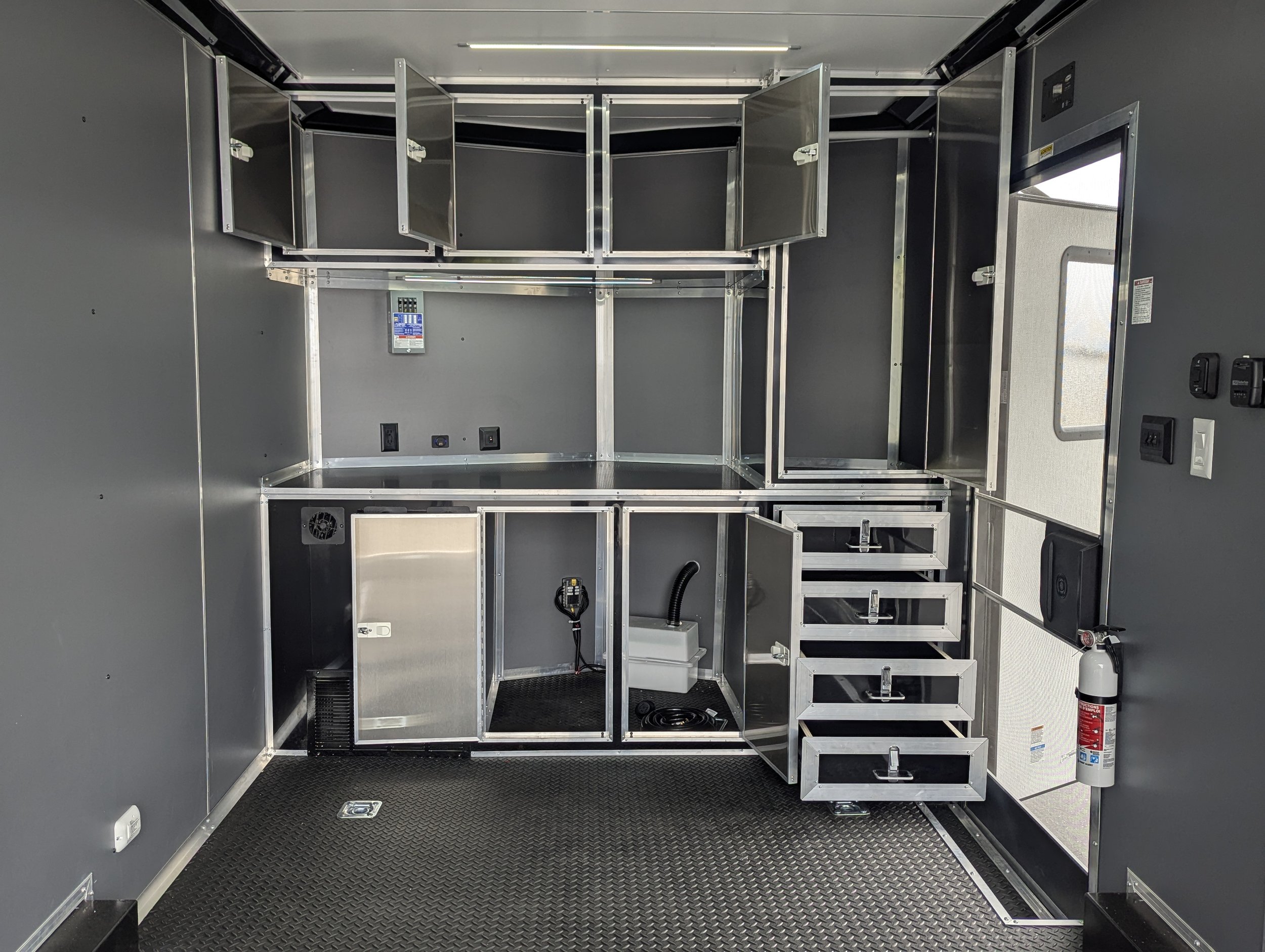

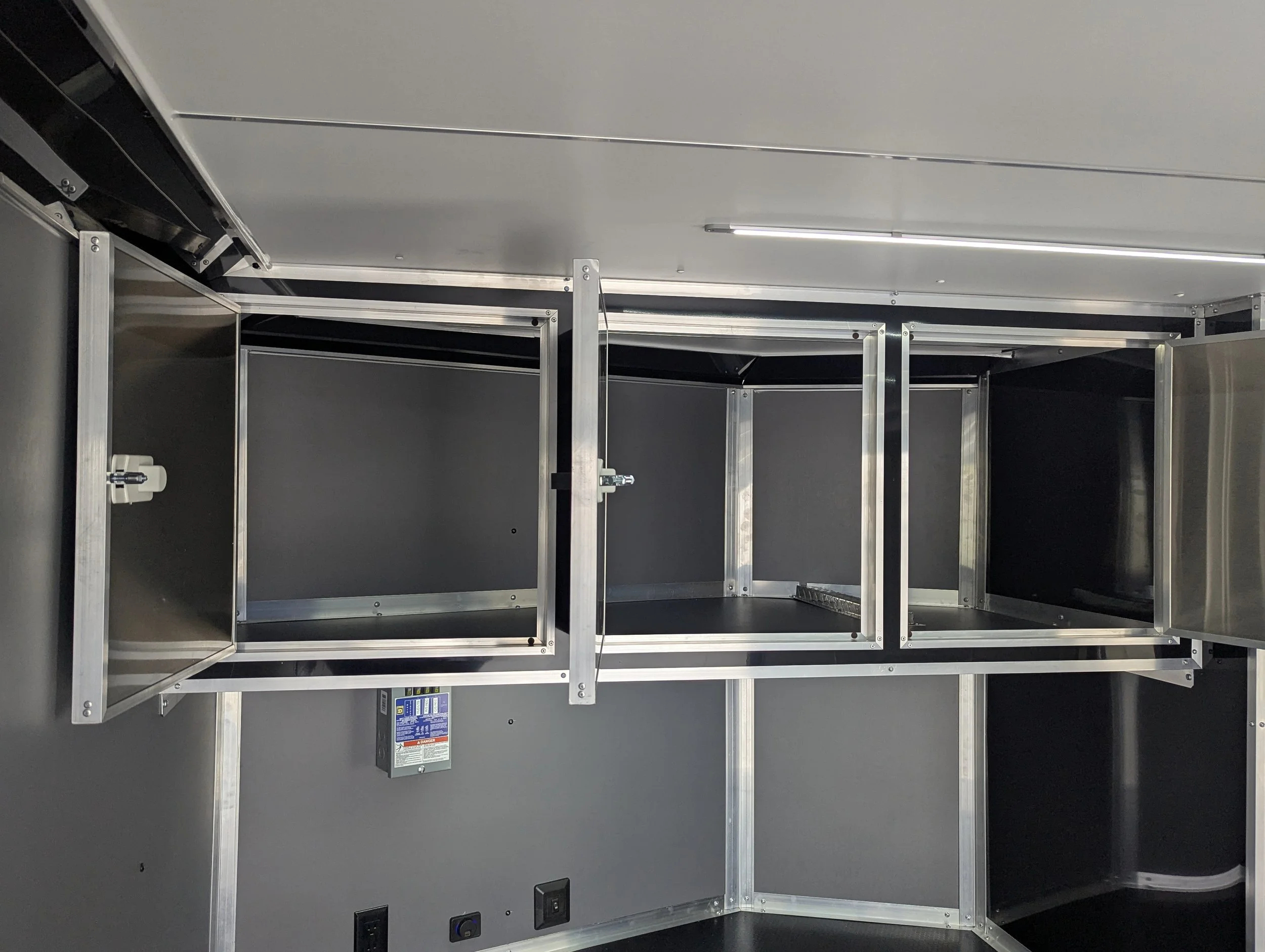

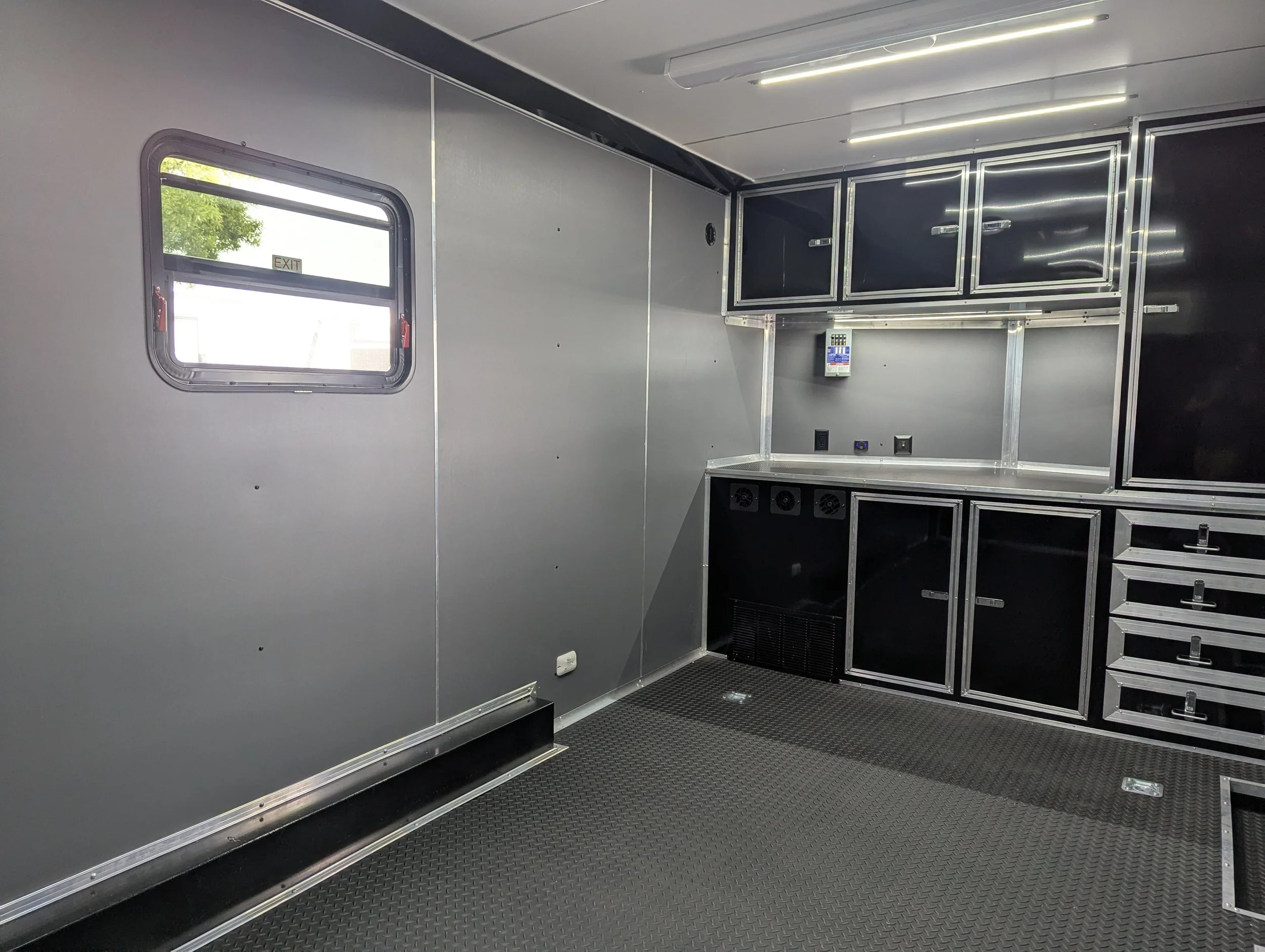

Black Base and overhead cabinets
40” LED strip light under cabinet

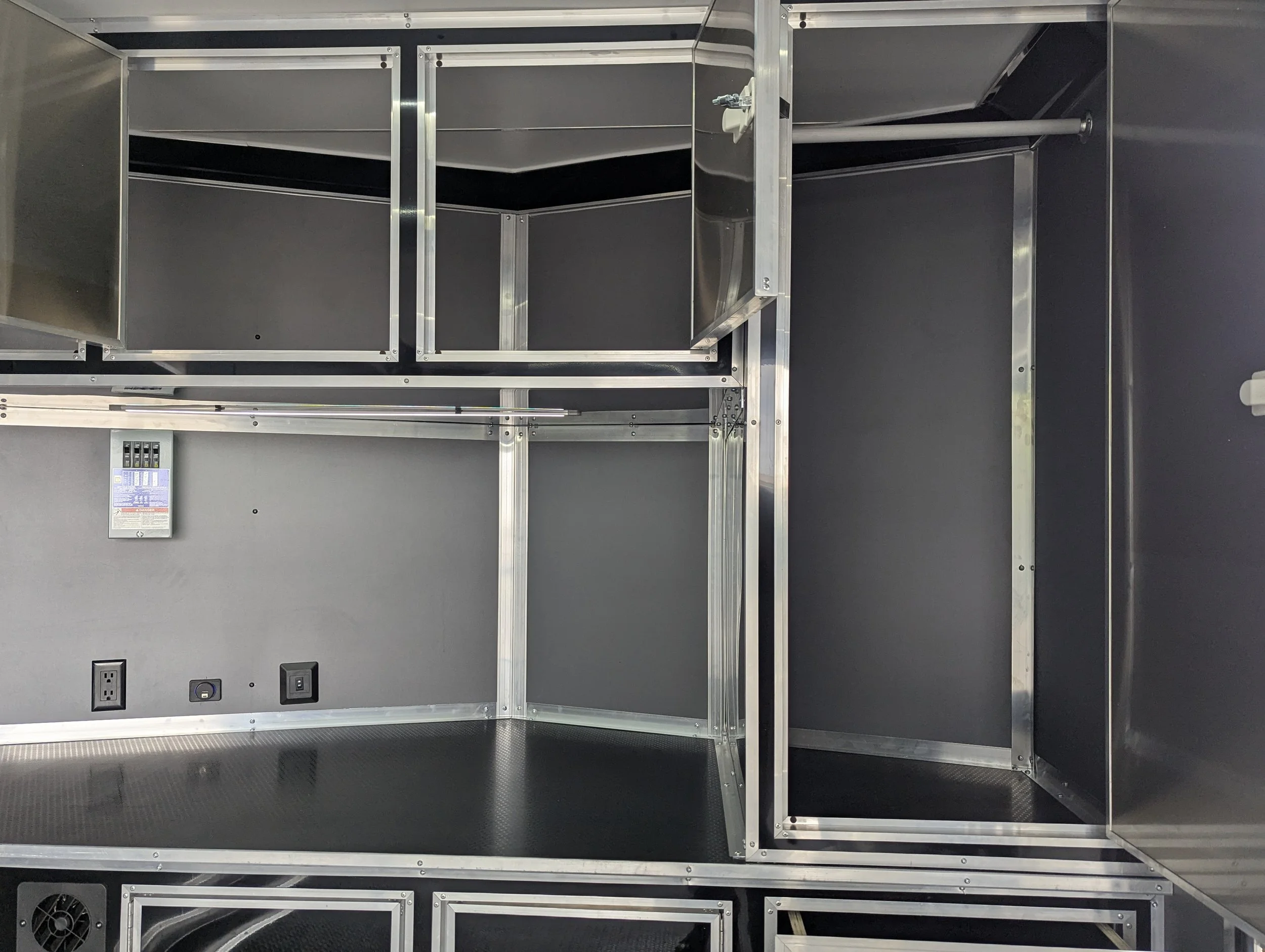

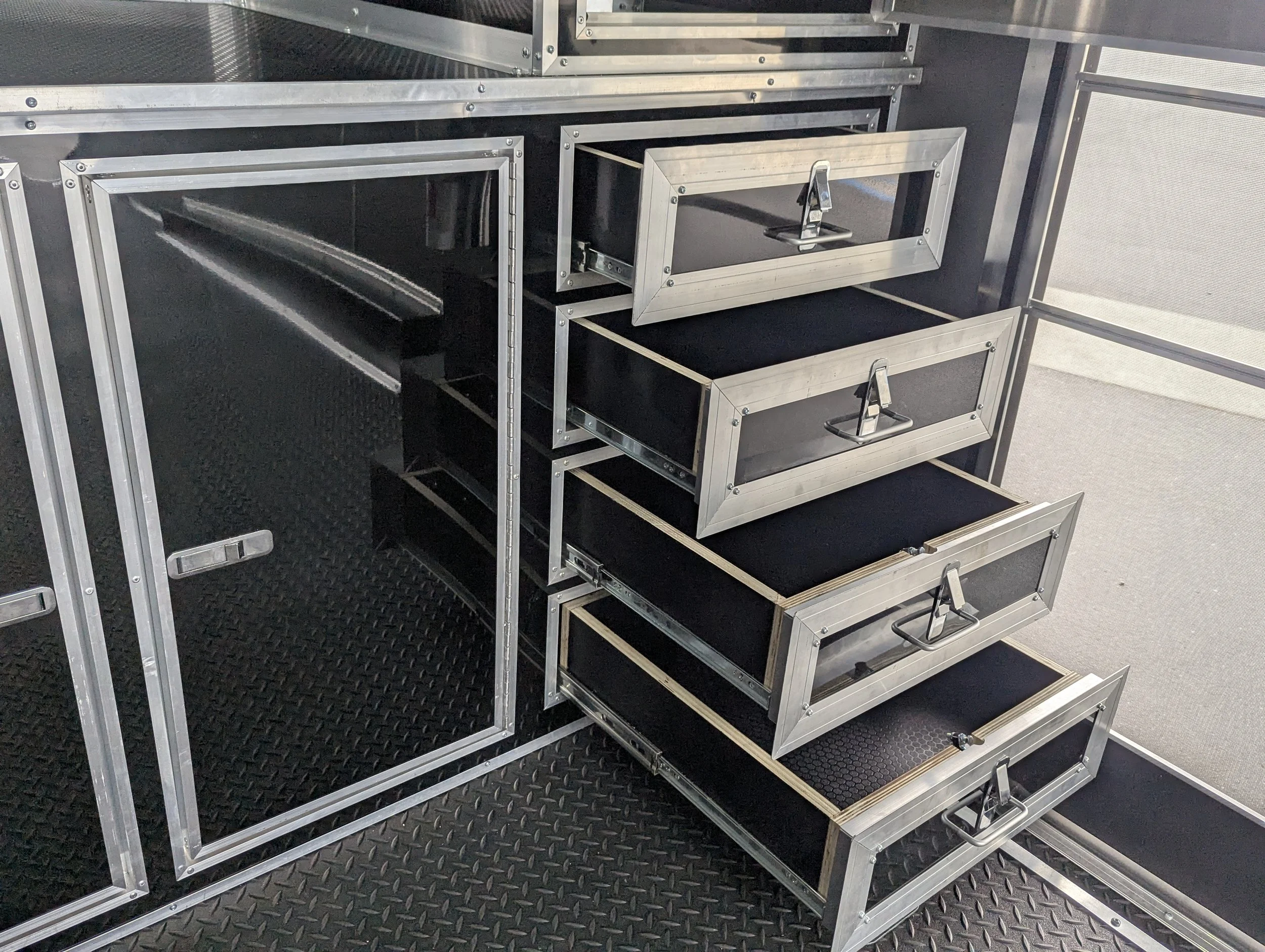

Upper closet with 4 lower drawers

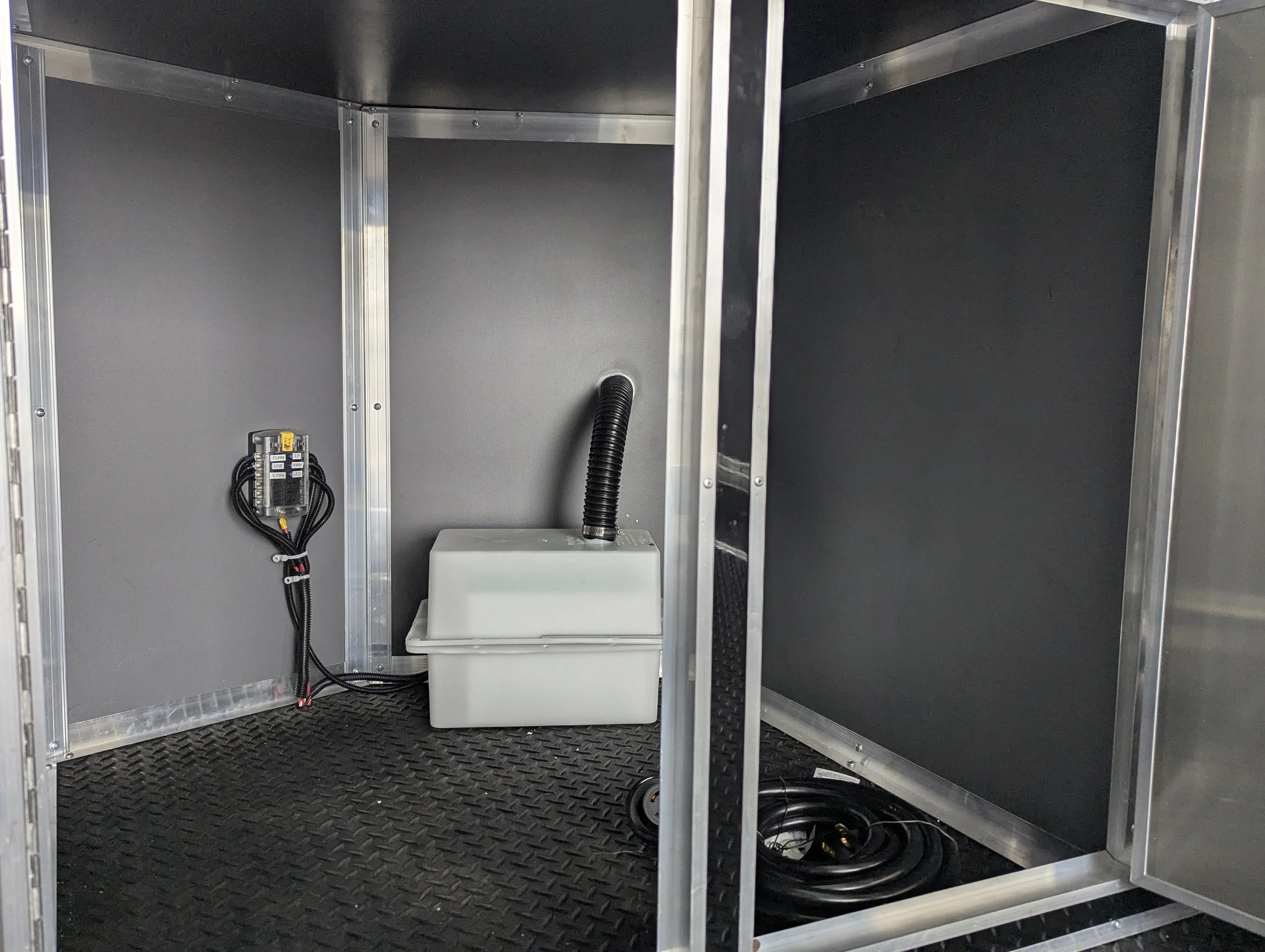

Ducted propane furnace

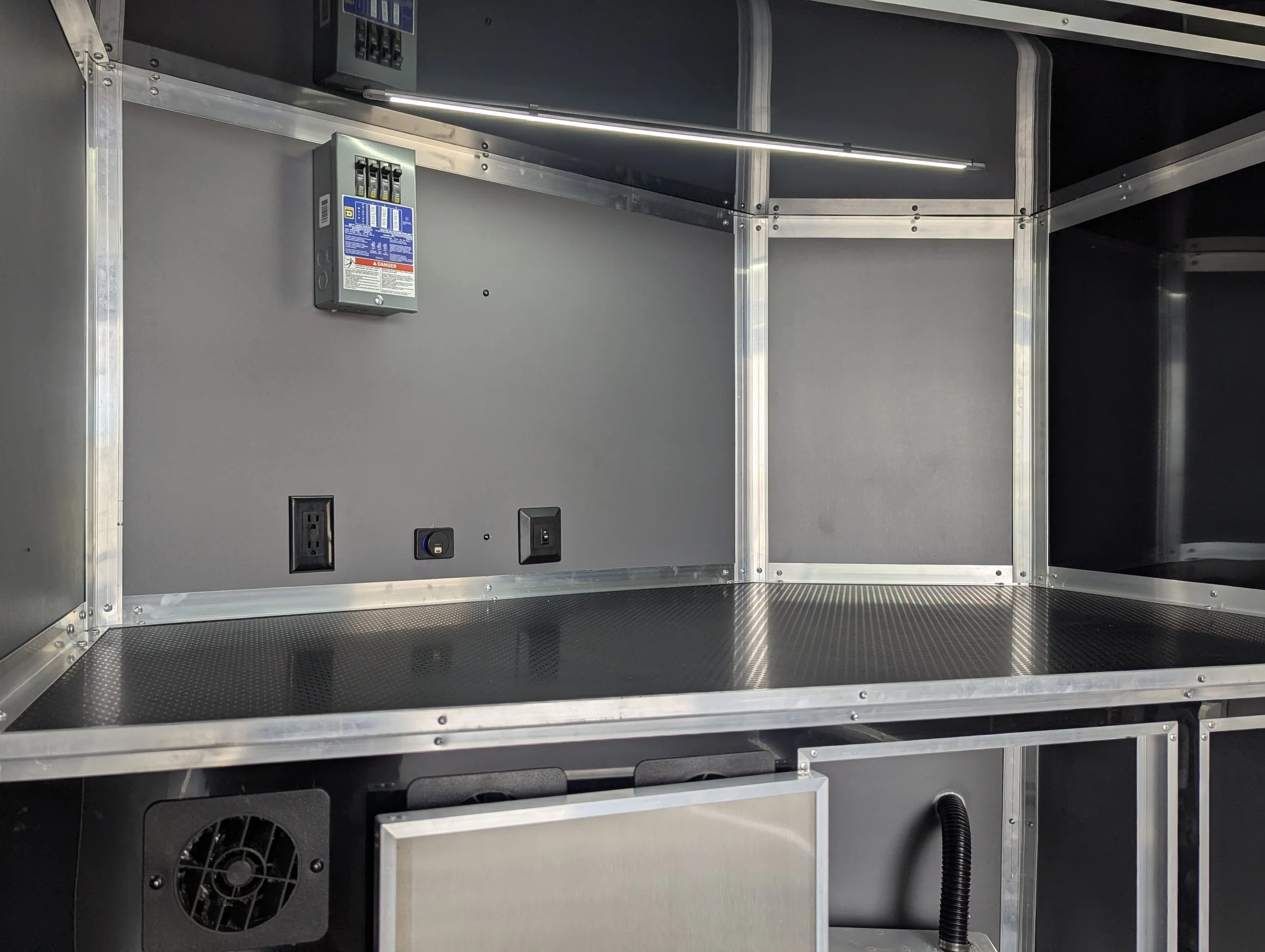

12V Power center with USB A and USB C
87" Interior height
81" Fender to fender width
(4) 40” LED lights
(2) 12v Light switches

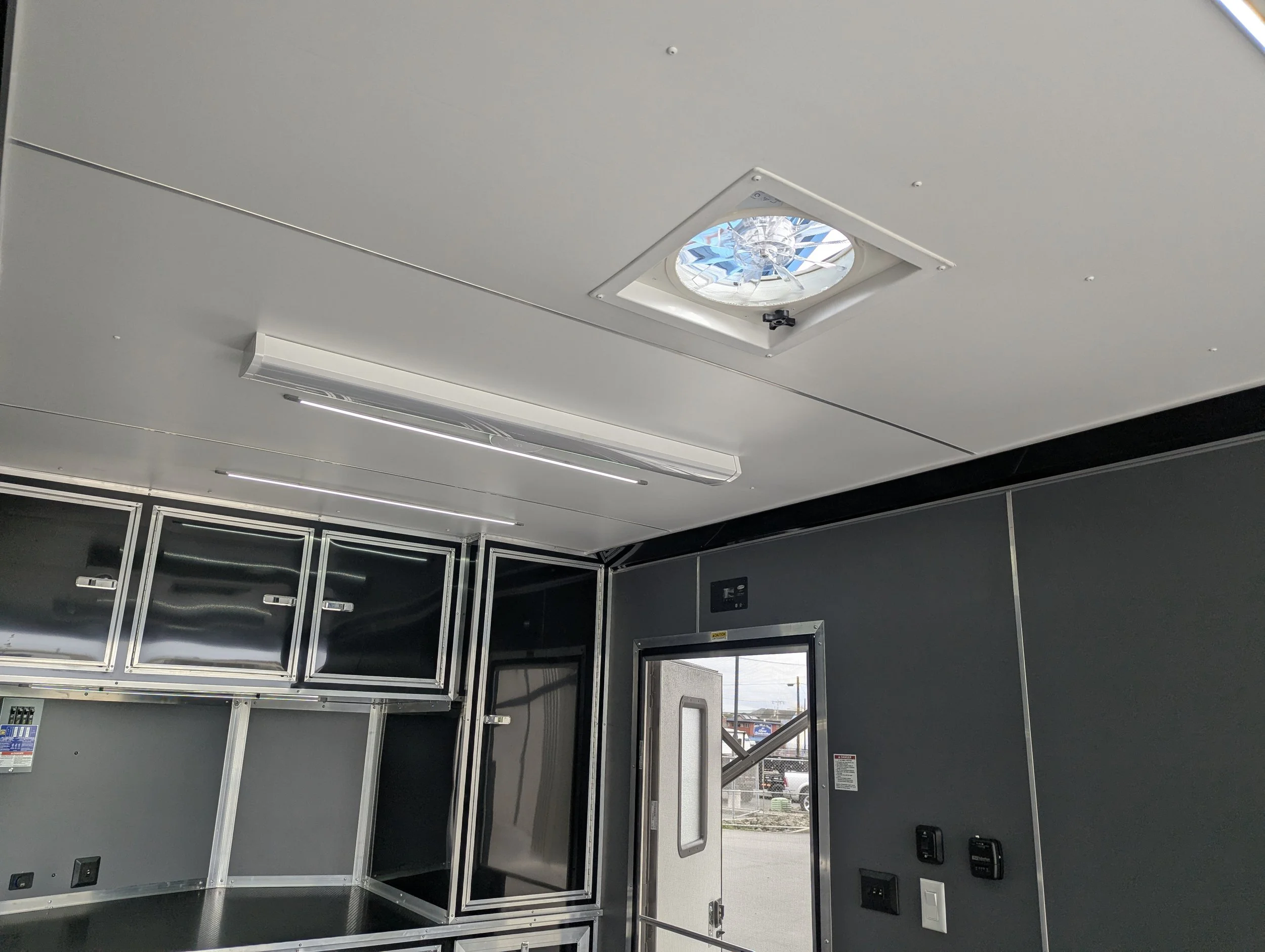

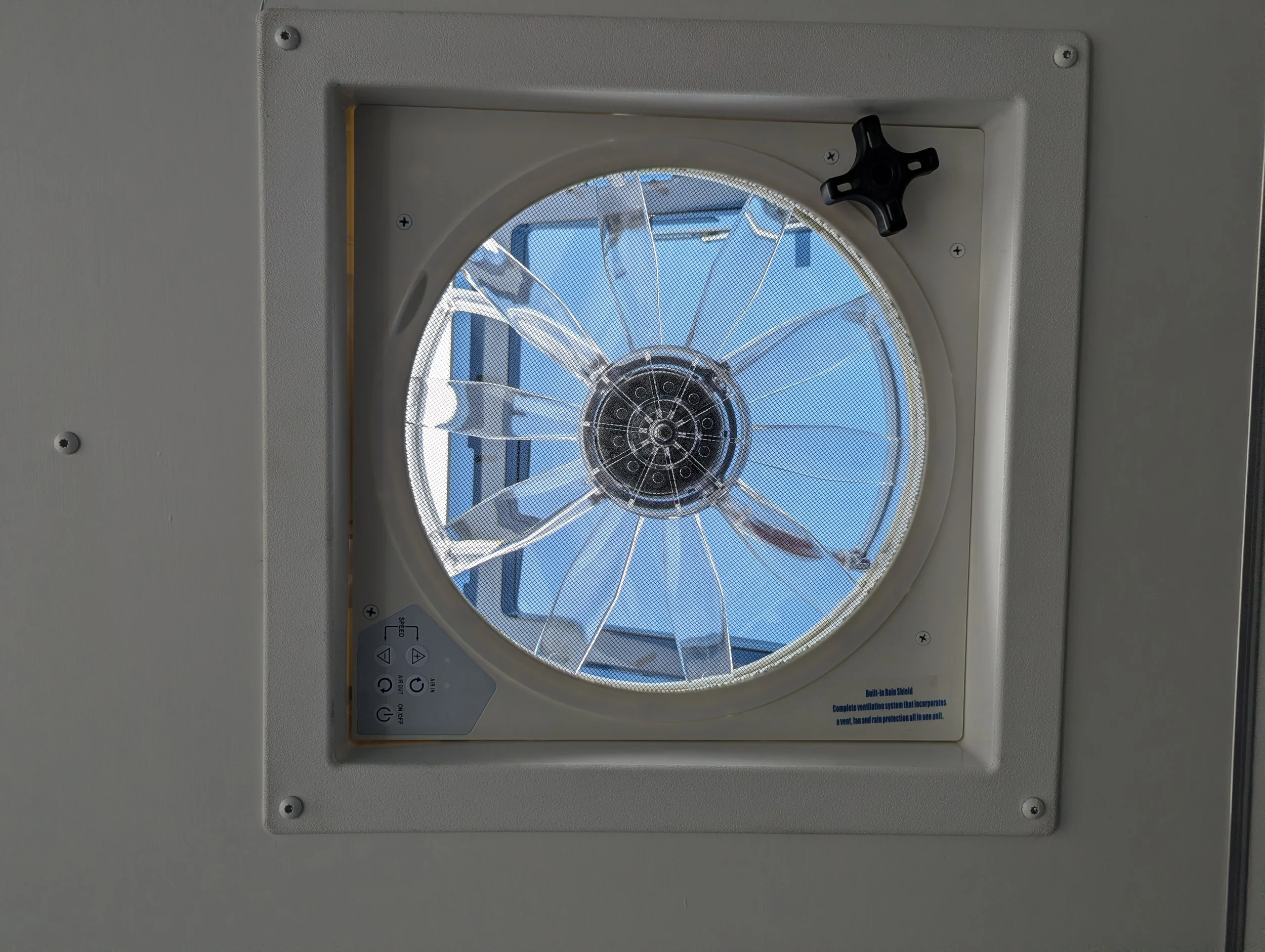

Roof vent with 12V fan with speed and direction control
30” x 22” Egress Window
Smoke Detector
Carbon monoxide detector

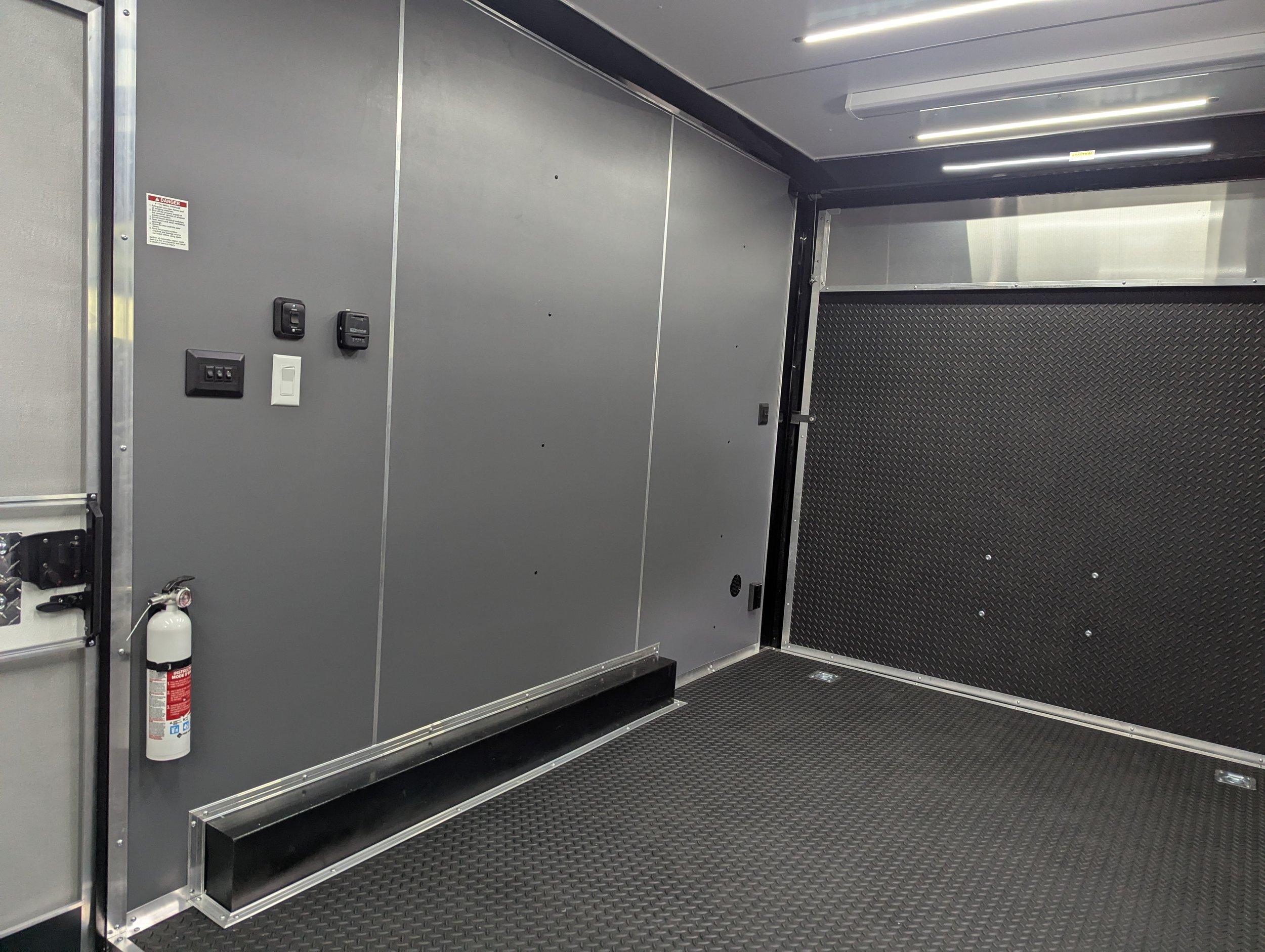

Fire extinguisher
3/4" Ground transition flap
12V Deep cycle battery
(2) Fluorescent lights
(4) Interior 2-gang receptacles

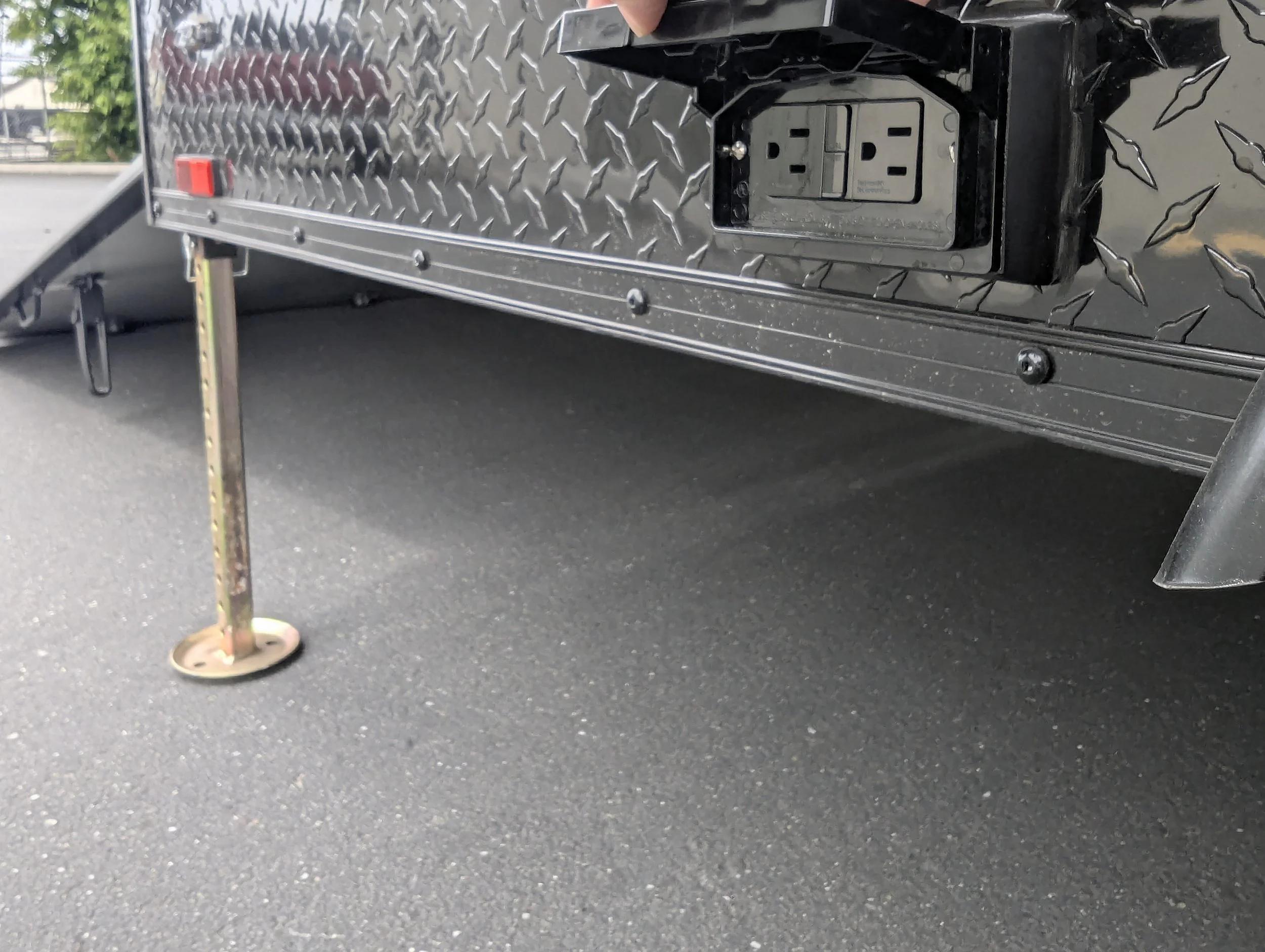

(2) exterior GFI receptacle
30A inlet with breaker panel
25’ Lifeline
